In many industrial applications, mechanical seals play a crucial role in ensuring the efficient and safe operation of equipment. They are designed to prevent the leakage of liquids or gases and protect machinery. Whether in pumps, compressors, boilers, or other industrial equipment, selecting the appropriate type of mechanical seal is essential for equipment performance and maintenance. This article provides a detailed comparison of cartridge mechanical seals and non-cartridge mechanical seals, highlighting their respective advantages and applications.
What is a Mechanical Seal?
A mechanical seal is a device used to prevent the leakage of fluids, typically in rotating machinery such as pumps, compressors, and fans. It works by providing a reliable sealing effect between the rotating and stationary sealing faces, preventing fluid leakage while minimizing friction and wear, thus extending the lifespan of the equipment. Mechanical seals are classified into two main types based on their structure and assembly method: cartridge mechanical seals and non-cartridge mechanical seals.

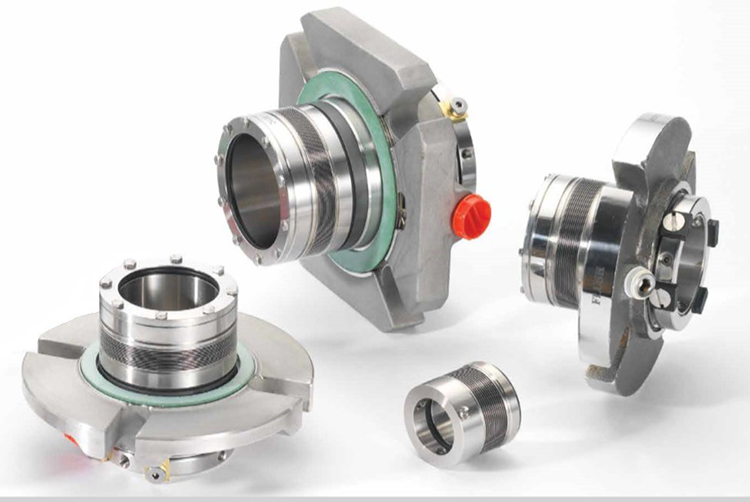

Cartridge Mechanical Seals
Cartridge mechanical seals, also known as combined seals, involve pre-assembly of all sealing components, such as sealing faces, springs, and sealing rings, into a complete unit before shipment. This design simplifies installation and maintenance, ensuring better reliability and performance.
1. Simplified Installation and Maintenance
With a cartridge mechanical seal, all components are pre-assembled at the factory, meaning that onsite installation requires only the entire seal unit to be inserted into the equipment. This significantly reduces the complexity of installation and lowers the risk of errors. Moreover, the pre-assembled nature makes it easier to replace the entire seal, which helps reduce downtime for maintenance.
2. High Stability and Sealing Performance
Cartridge mechanical seals ensure high stability and consistent performance since all components are precision-assembled in the factory. This design helps maintain excellent sealing performance over long periods, reducing leakage risks and extending the lifespan of the seal.
3. Wide Applicability
Cartridge mechanical seals are suitable for a wide range of standard equipment, especially in applications where high reliability and low maintenance are required, such as in various types of pumps, centrifugal machines, etc.

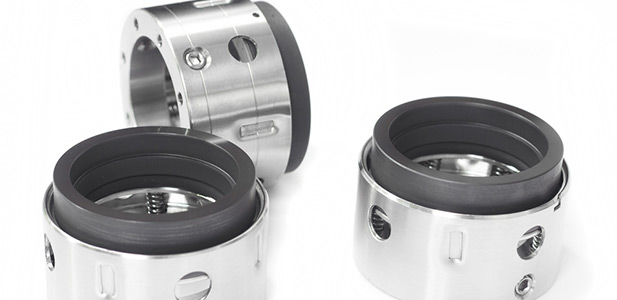

Non-Cartridge Mechanical Seals
Non-cartridge mechanical seals consist of individual components (such as sealing faces, springs, etc.) that are assembled onsite based on specific requirements. This type of seal offers greater flexibility and is more adaptable to customized applications.
1. Flexible Customization
Each component of a non-cartridge mechanical seal can be customized to meet the exact requirements of the equipment, making it ideal for applications that require specific sizes, materials, or operational conditions.
2. Suitable for Large or Complex Equipment
Non-cartridge mechanical seals are often used in large, complex, or specialized equipment. For instance, heavy-duty pumps, boilers, or machinery operating in extreme conditions may benefit from the flexibility offered by non-cartridge mechanical seals.
3. Flexibility in Disassembly and Maintenance
While the installation and assembly process for non-cartridge mechanical seals may be more complex, the flexibility to disassemble and inspect individual components during maintenance can be advantageous. This allows for more cost-effective repairs by replacing only the damaged components.
Choosing Between Cartridge and Non-Cartridge Mechanical Seals
The choice between a cartridge and a non-cartridge mechanical seal depends on several factors, including the type of equipment, the operational environment, and the maintenance requirements:
Equipment Type: Cartridge mechanical seals are more suitable for standardized equipment, where installation and replacement are simplified. Non-cartridge seals are better suited for large or specialized equipment that requires custom designs.
Customization Needs: For equipment with unique operational conditions or special requirements, non-cartridge mechanical seals offer greater flexibility.
Maintenance Considerations: Cartridge mechanical seals, due to their pre-assembled nature, are easier to install and replace, reducing maintenance time. However, non-cartridge mechanical seals may provide more flexibility during repairs, especially in complex or specialized applications.
Shanghai EK Mechanical Seal Co., Ltd.'s Expertise
Founded in 2003, Shanghai EK Mechanical Seal Co., Ltd. has been committed to the design, production, and technical support of mechanical seals for over 20 years. The company offers a range of mechanical seal products, including both cartridge and non-cartridge seals, to meet the diverse needs of its customers.
1. Precision Manufacturing and Technical Support
Shanghai EK Mechanical Seal Co., Ltd. uses advanced manufacturing equipment and processes to ensure that every mechanical seal meets high-quality standards. The company also boasts an experienced R&D team capable of providing customized designs to address complex sealing requirements in various operational environments.
2. Comprehensive After-Sales Service
As a well-established player in the mechanical seal industry, Shanghai EK Mechanical Seal Co., Ltd. offers comprehensive after-sales support to ensure the long-term, stable operation of its customers’ equipment. Whether it's installation guidance, technical support, or regular maintenance services, the company provides complete solutions to meet customer needs.
3. Wide Product Applications
Shanghai EK Mechanical Seal Co., Ltd.'s products are widely used in industries such as oil and gas, chemicals, power generation, mining, and metallurgy. The company provides efficient and reliable sealing solutions for pumps, boilers, and various other types of equipment.
Conclusion
Both cartridge and non-cartridge mechanical seals offer unique advantages, and their suitability depends on the specific equipment and application. When selecting a mechanical seal, it is essential to consider factors such as the seal's characteristics, installation requirements, and maintenance cycles to ensure optimal performance and cost-effectiveness. With its extensive experience and advanced technology, Shanghai EK Mechanical Seal Co., Ltd. is well-equipped to provide professional mechanical sealing solutions tailored to the needs of different industries and equipment.
