Model NO. EK-M74D
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter:18 mm to 85 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 8/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

Our Mechanical seal model M74D can Replace BURGMANN M74D,which is widely used for industrial pumps. The normal material combination include SIC/RESIN CARBON/NBR/SS304,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on. We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure: ≤1.6 MPa

Temperature:-20C~+180°C

Linear Speed: ≤10m/s

Materials

Rotary Ring: Carbon/SIC/TC

Stationary Ring: Carbon/SIC/TC

Elastomers: EPDM/VITON/NBR

Springs: SS304/SS316

Metal Parts: SS304/SS316

Mediums

weak acid, weak alkalis, water and solvents.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

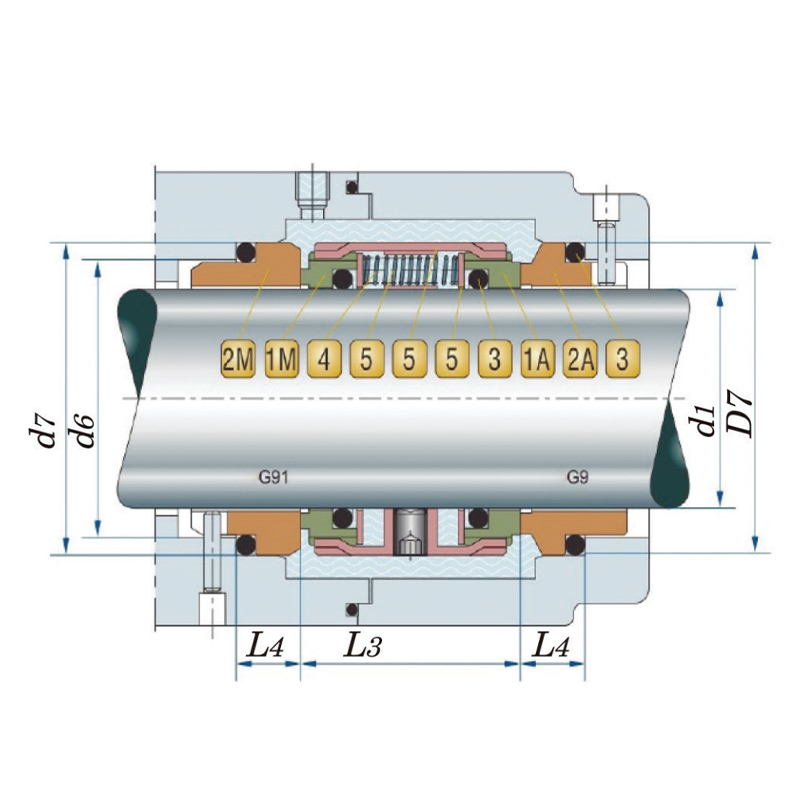

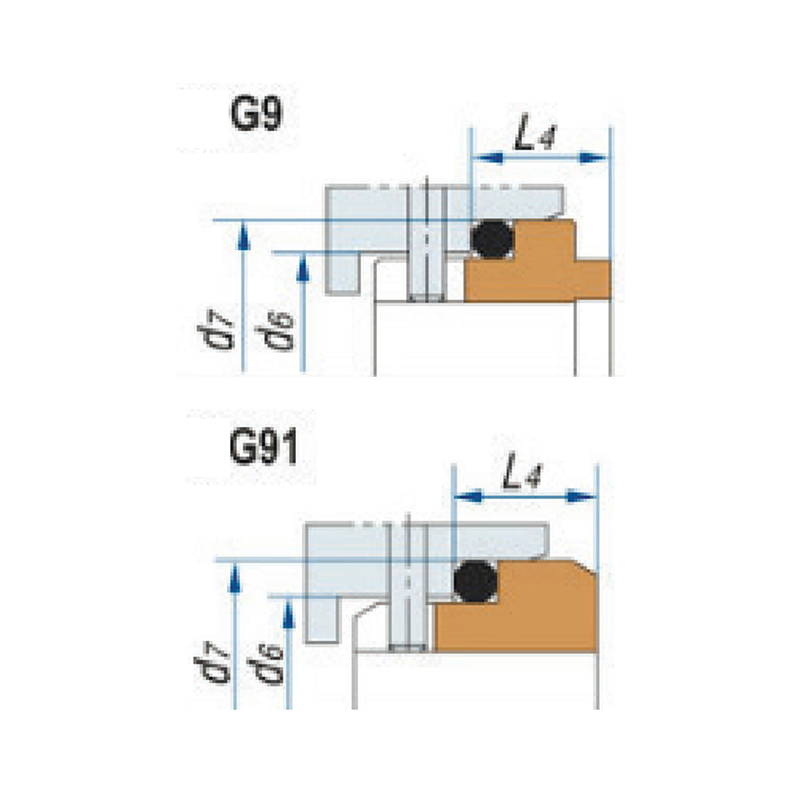

EK_M74D_para1.jpg EK_M74D_para2.jpg
