Model NO. EK-JY4
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter: 12 mm to 16 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

Our mechanical seal model JY4 is mainly designed for the Grundfos pump.JY4-12mm is suitable for item Number of Grundfos: 985167/ 405145/ 405009/96513598.JY4-16mm is suitable for item Number of Grundfos:985204/339701/96521638.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure:≤1.7 MPa

Temperature: -40°C~+180°C

Linear Speed: ≤15 m/ s

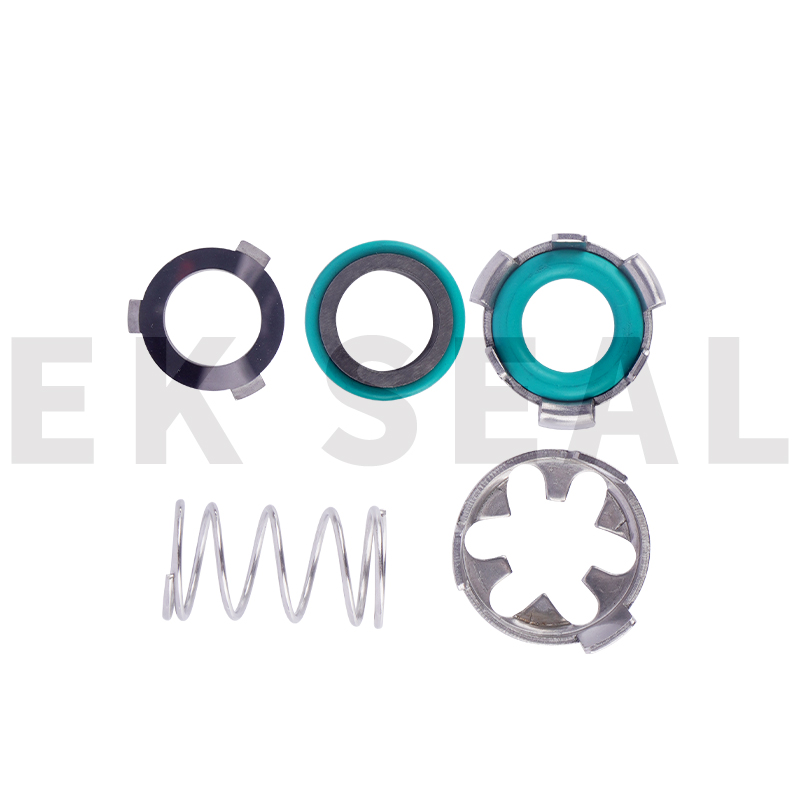

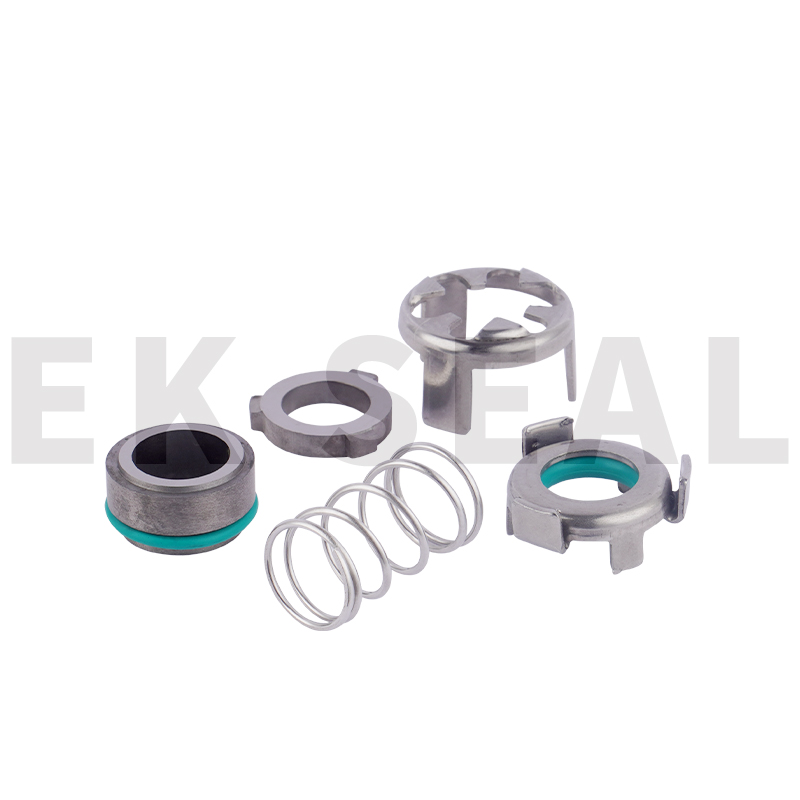

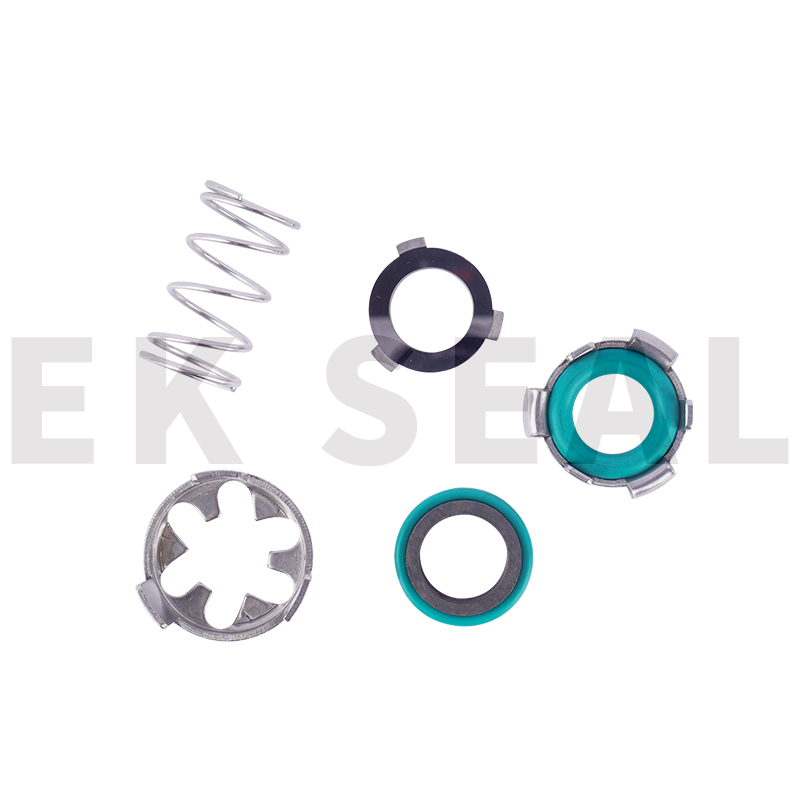

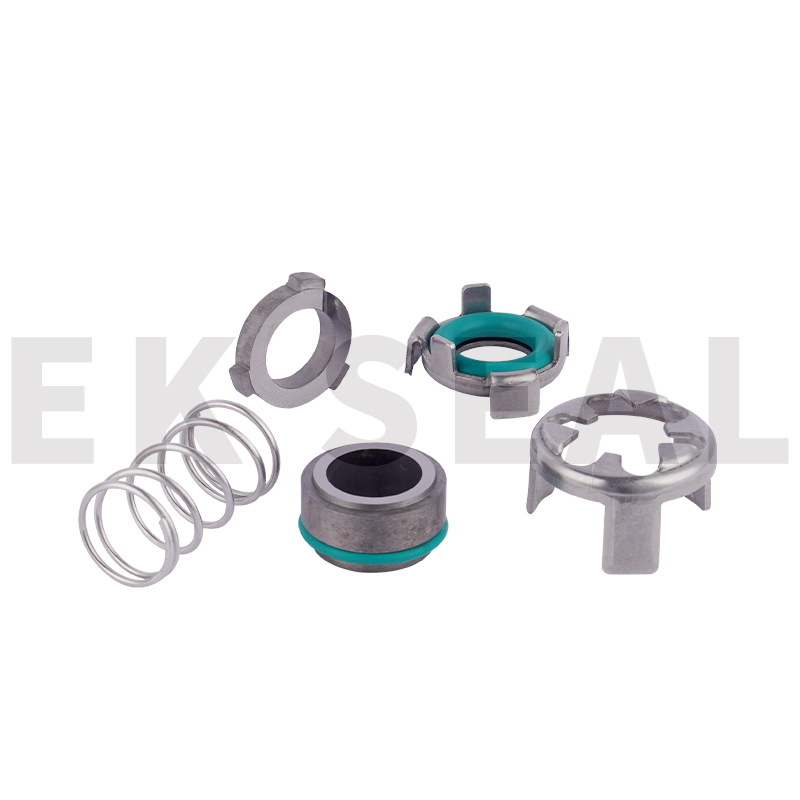

Materials

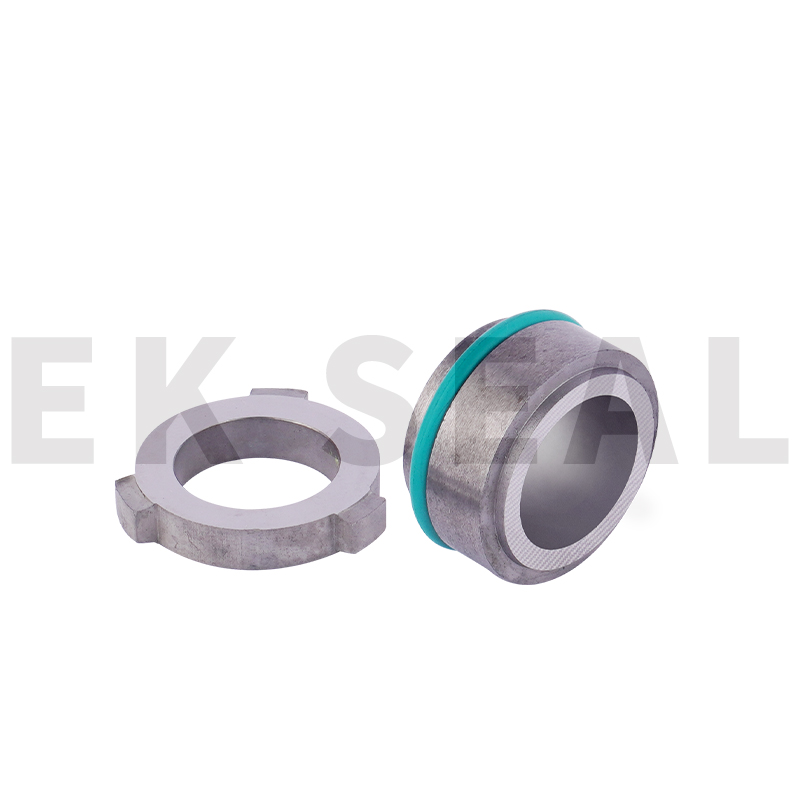

Rotary Ring: Carbon/SIC/TC

Stationary Ring: Carbon/SIC/TC

Elastomers:EPDM/VITON

Springs:SSS304/SS316

Metal Parts: SS304 /SS316

Mediums

weak acid, weak alkalis, water and solvents.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
