Model NO. | EK-CAM |
Balance | Unbalanced |
Standard | ISO3069, GB6556, DIN24960 |

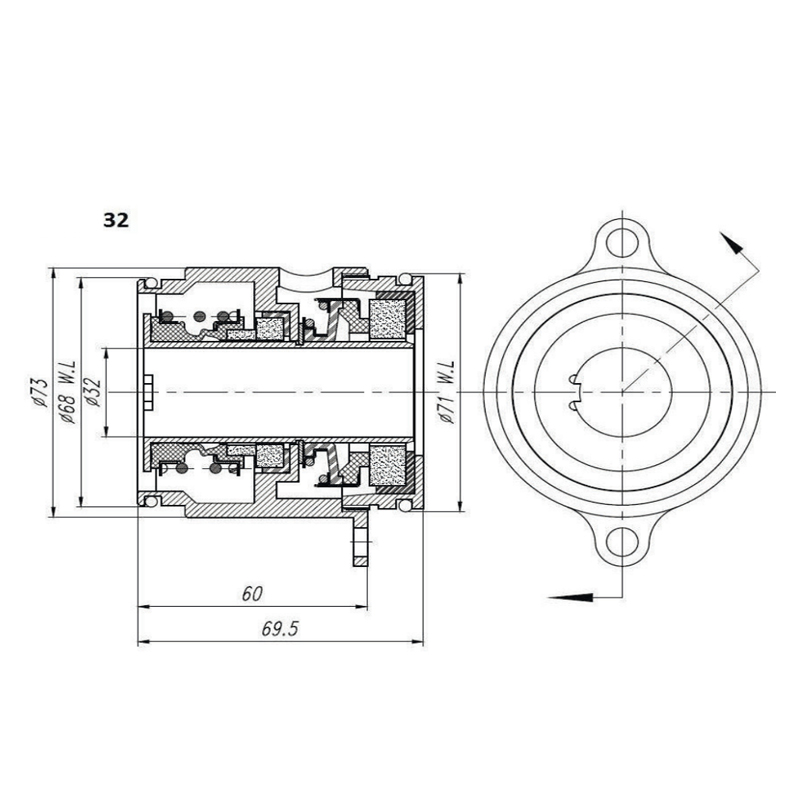

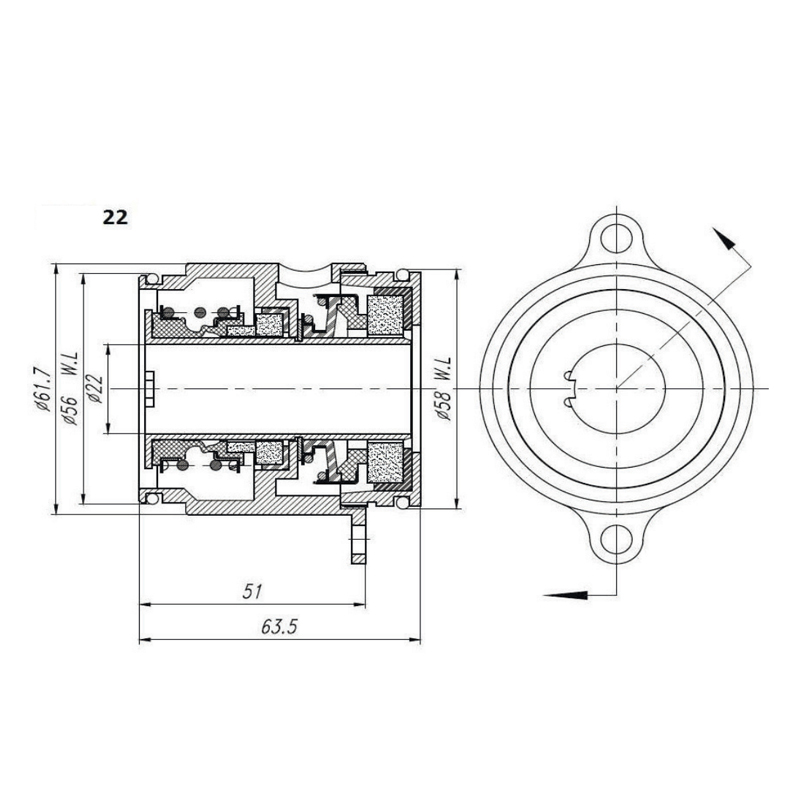

Specification | Inner Diameter:22 mm to 32 mm |
Packaging Details | Carton |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

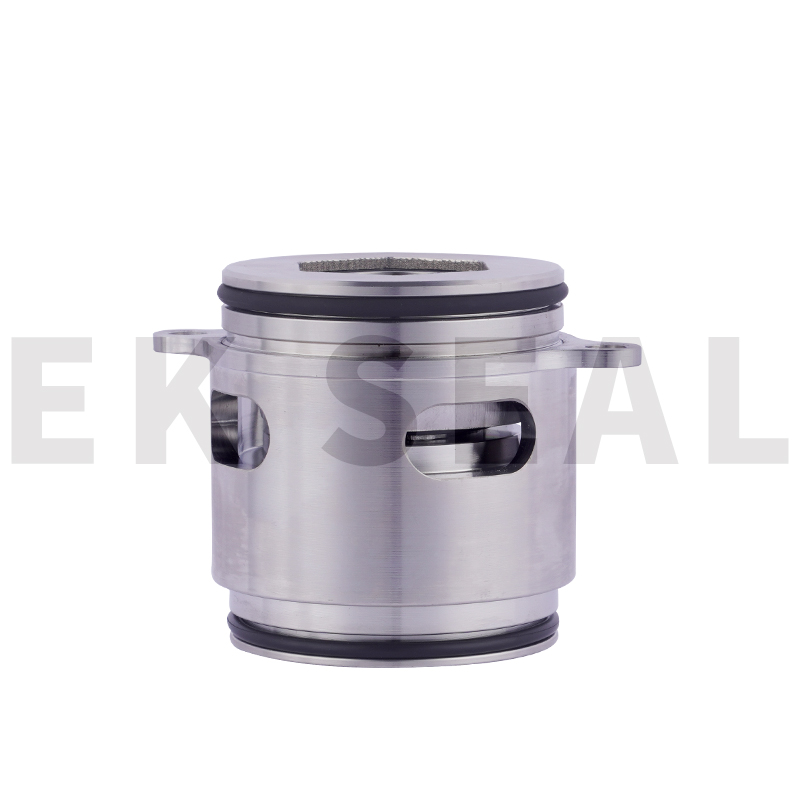

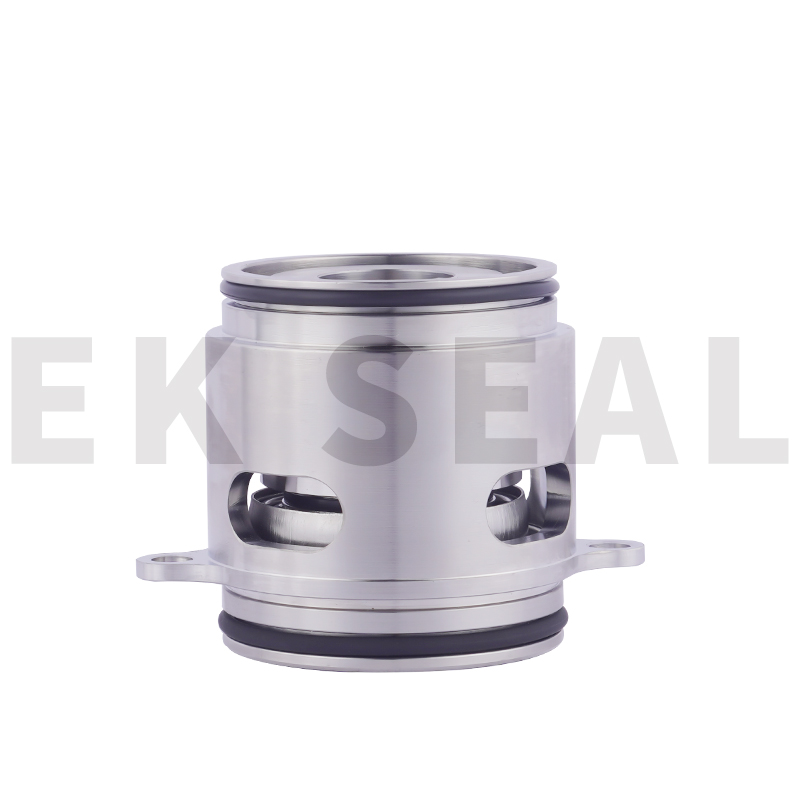

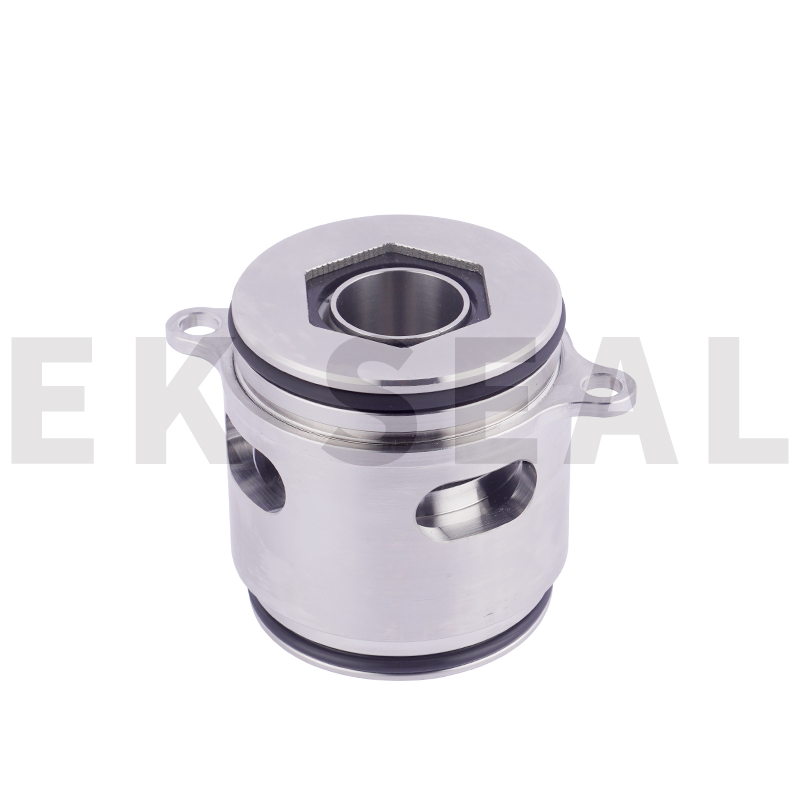

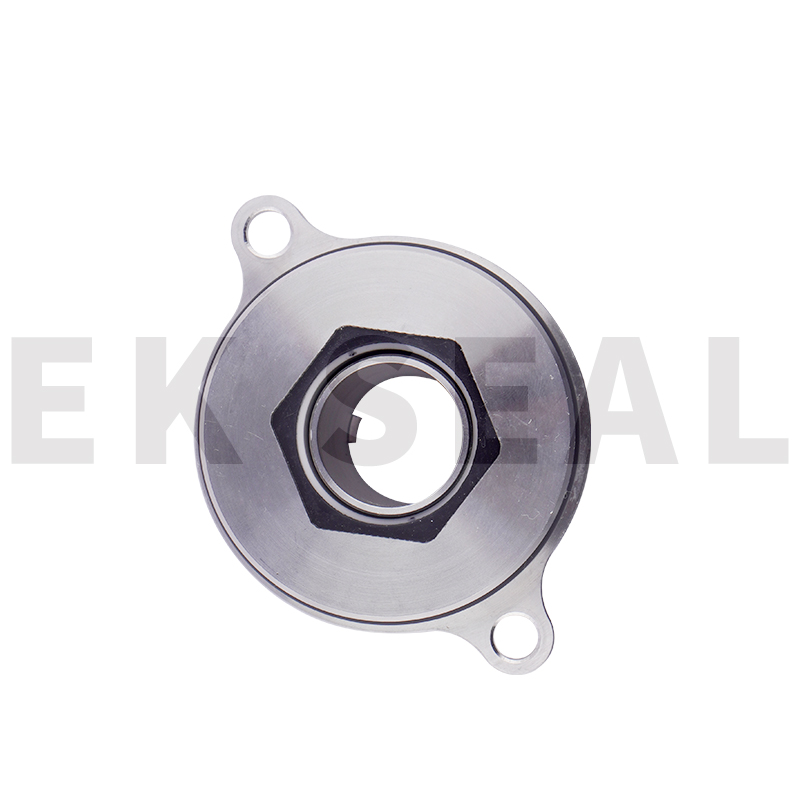

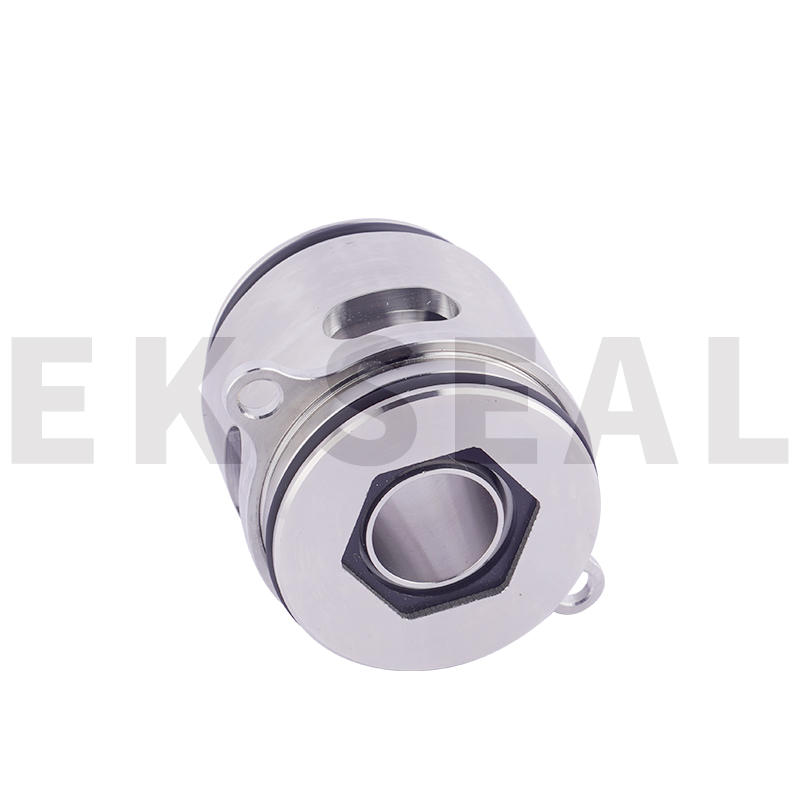

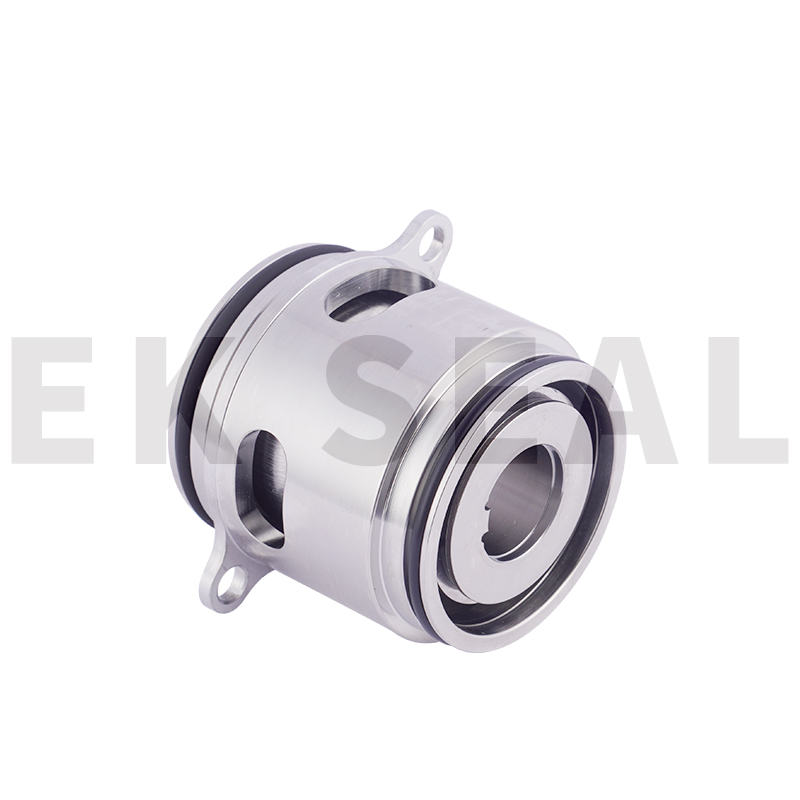

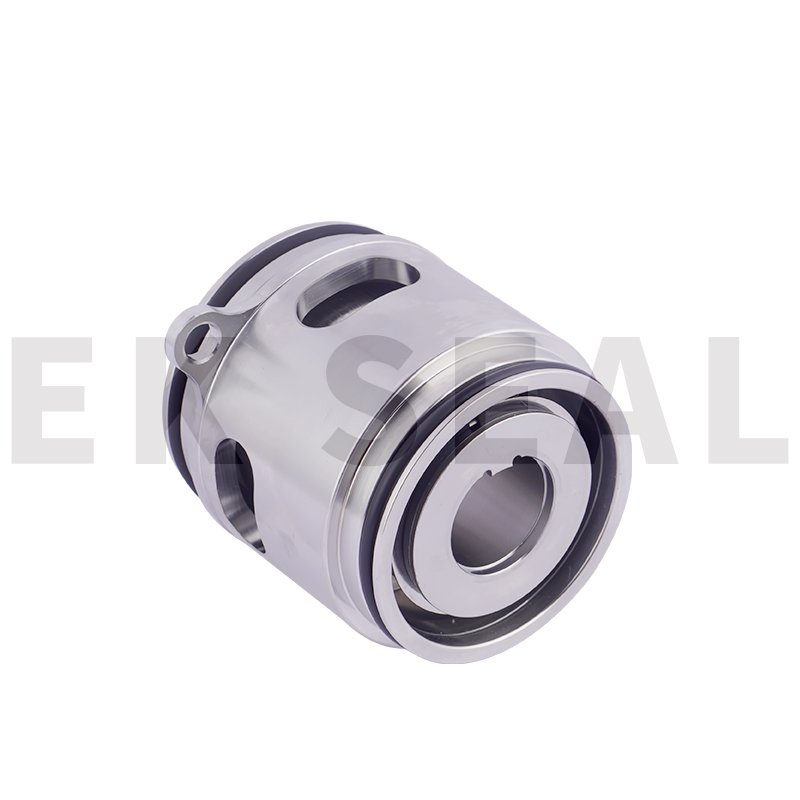

Request ConsultationOur Mechanical seal model CAM is widely used in Grundfos Sarlin pumps/Sarlin S1/Sarlin S2/Sarlin S3/Sarlin SV/Sarlin SA,Grundfos Hilge pumps and Grundfos TP (Series 100 & 200), NP5, LPD, NP and LP TP25 TP32 TP40 TP50 TP65 TP80 TP100 TP125 TP150 TP200.It can replace the Seals For GRUNDFOS,Sarlin,HIGE,INOXPA AND JABSCO Pumps Series.We also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.
Pressure: ≤3 MPa
Temperature: - 20°C~ +180°C
Linear Speed: ≤15m/s
Rotary Ring:SIC/TC
Stationary Ring: Carbon/SIC/TC
Elastomers:NBR/EPDM/VITON
Springs: SS304
Metal Parts:SS304/SS316
oil, water, and weak corrosive mediums.
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
