Model NO. EK-WB2
Balance Unbalanced
Standard JB/T7372-94
Specification Inner Diameter: 20 mm to 100 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

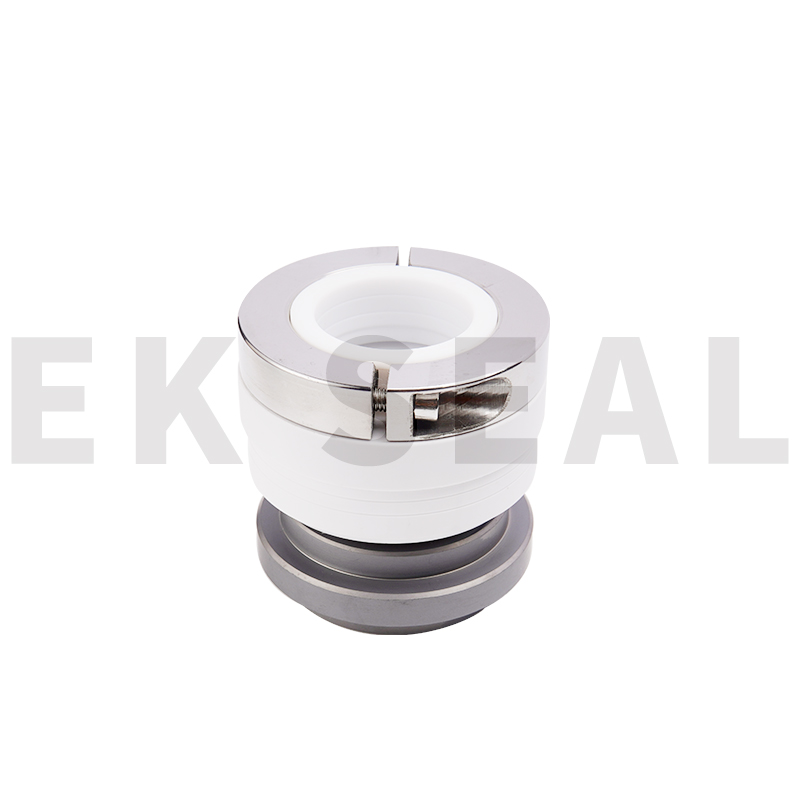

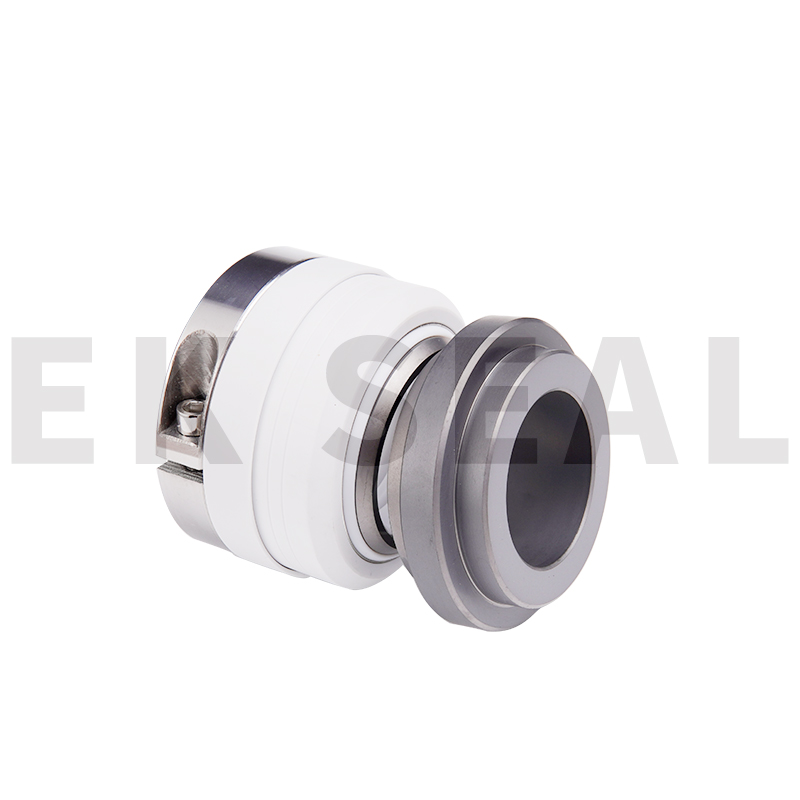

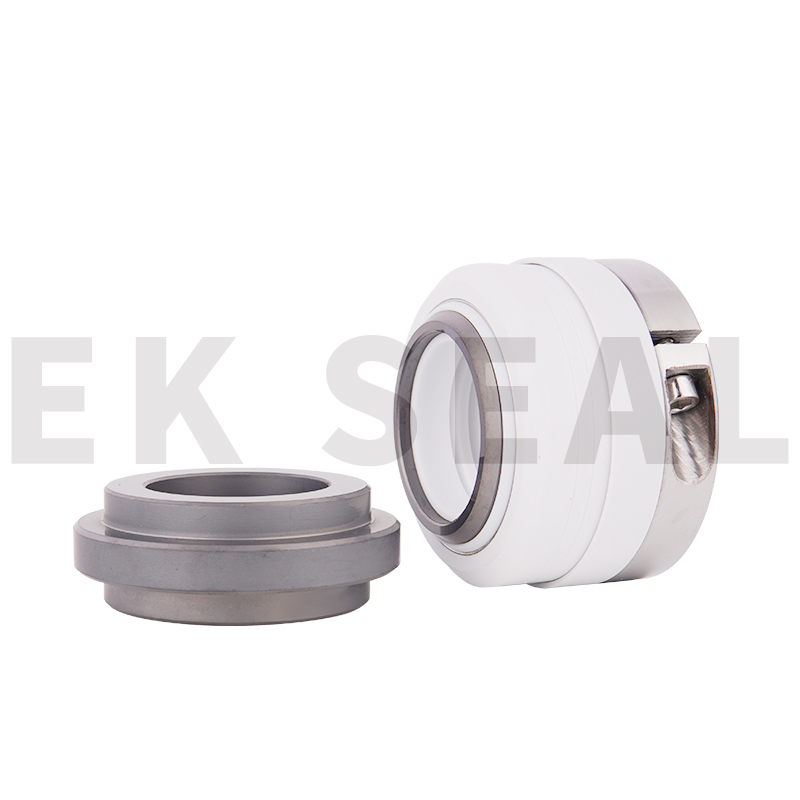

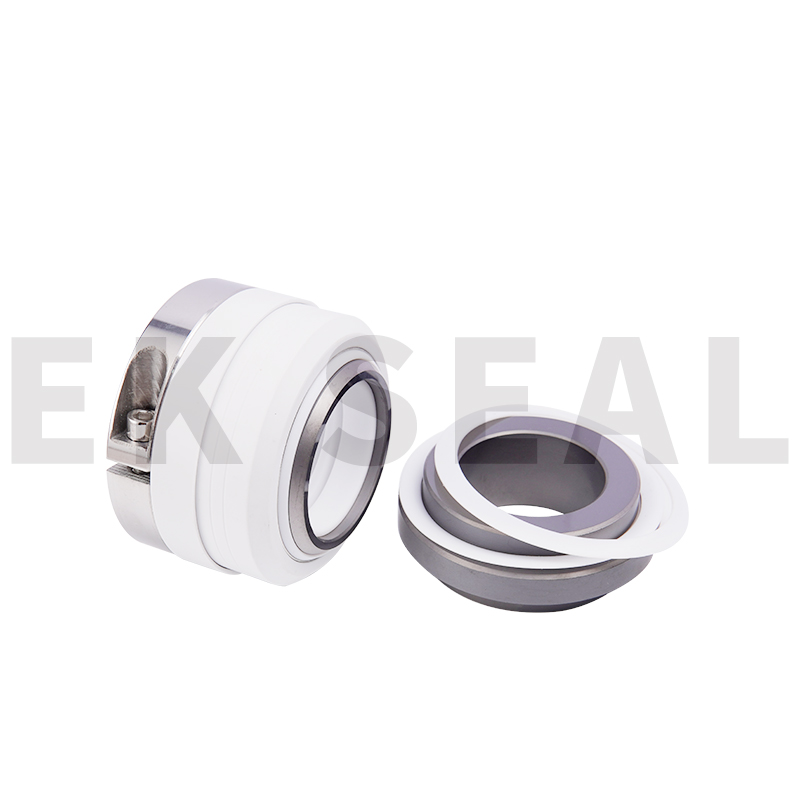

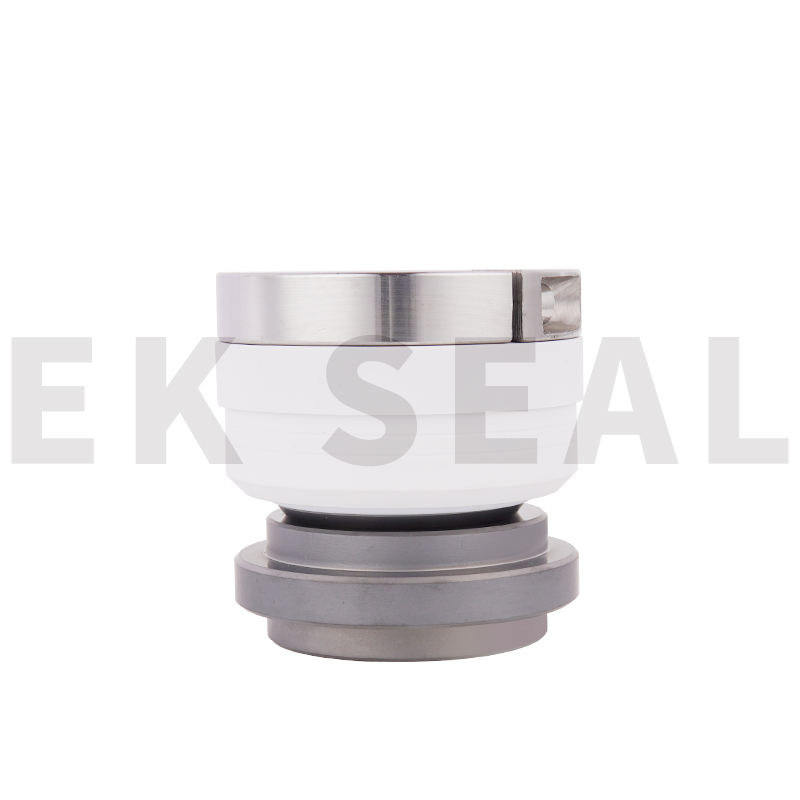

Our mechanical seal model WB2  belongs to machined mechanical seal and is widely used for industrial pumps.   The normal material combination is sic/sic. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs. This type of mechanical seal is widely used in acid proof pumps, plastic pumps, alkali pumps, vacuum equipment and other rotary devices.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure: ≤0.6 MPa

Temperature: - 20°C to +120ºC

Linear Speed: ≤10 m/s

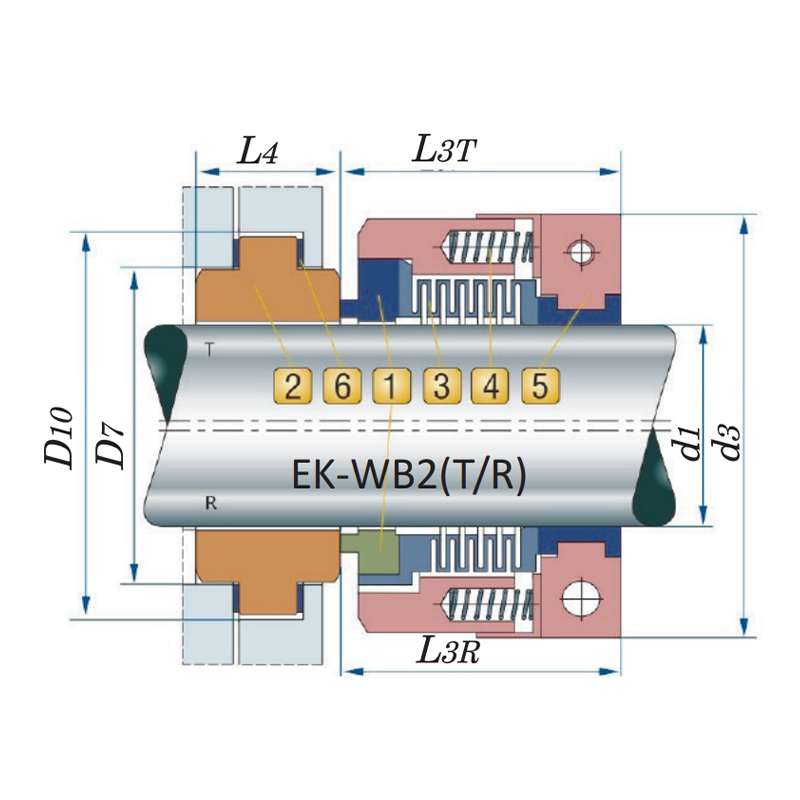

Materials

Rotary Ring: Filled PTFE (Teflon)/SIC

Stationary Ring: Al202/SIC/Carbon

Elastomers: PTFE

Metal Parts: SS304/SS316

Mediums

sulfuric acid hydrocarbon acid, phosphoric acid, acetic acid, and nitric acid With various degrees, etc.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
