JY1-T series mechanical seal,Suitable for Grundfos pumps ,12mm-16mm
JY1-T series mechanical seal,Suitable for Grundfos pumps ,12mm-16mm

JY1-T series mechanical seal,Suitable for Grundfos pumps ,12mm-16mm

Model NO. EK-JY1_T
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter: 12 mm to 16 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

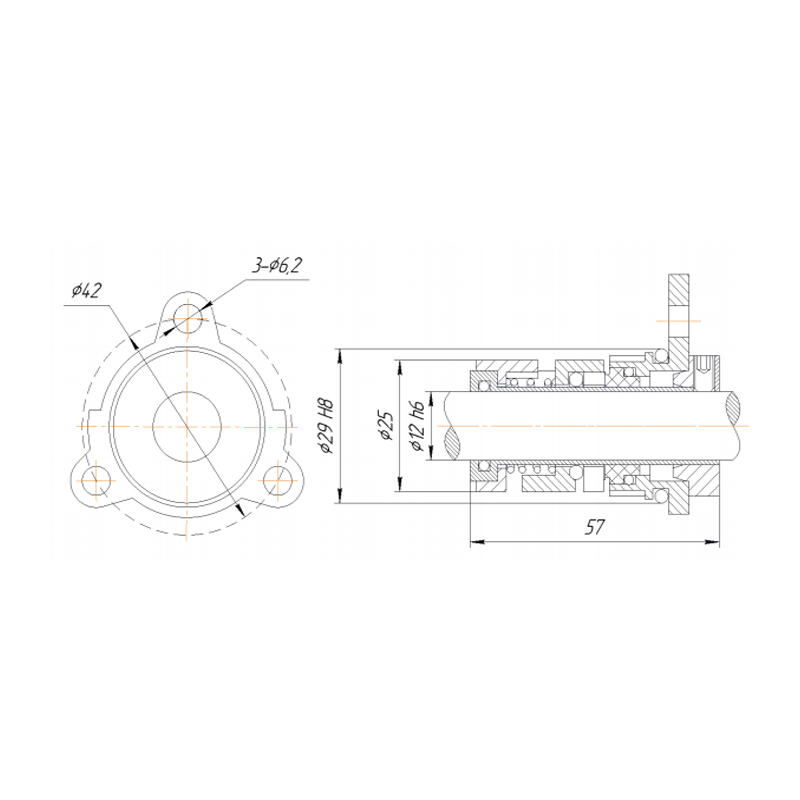

Our mechanical seal model JY1-T is mainly designed for the Grundfos pump.JY1-T-12mm is suitable for item Number of Grundfos:985167/405145/40500996513598.JY1-T-16mm is suitable for item Number of Grundfos:985204/339701/96521638.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure:≤1.5 MPa

Temperature:-20°C~+150°C

Linear Speed:≤15 m/s

Materials

Rotary Ring:Carbon/SIC/TC

Stationary Ring: Carbon/SIC/TC

Elastomers: NBR/EPDM/VITON

Spring: SSS304/SS316

Metal Parts: SS304/SS316

Mediums

weak acid, weak alkalis, water and solvents.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
