Model NO. EK-LWR-22
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter: 22 mm to 43 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

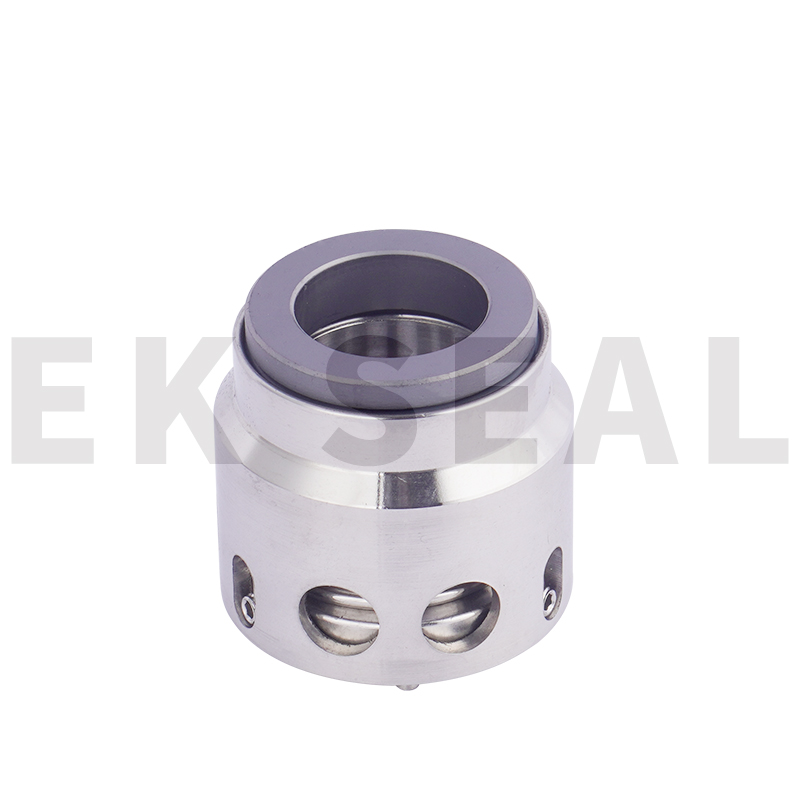

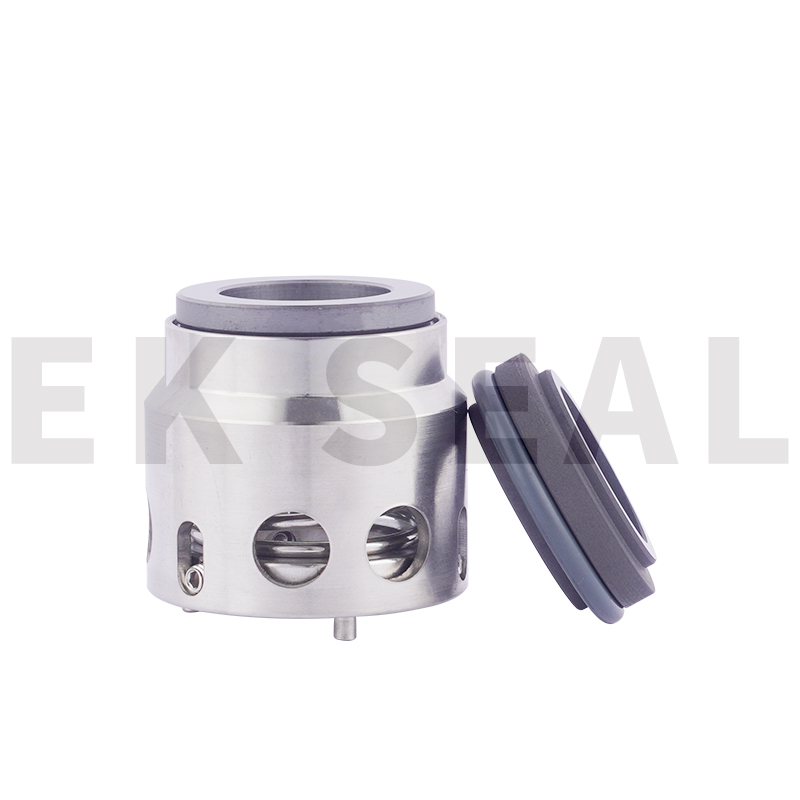

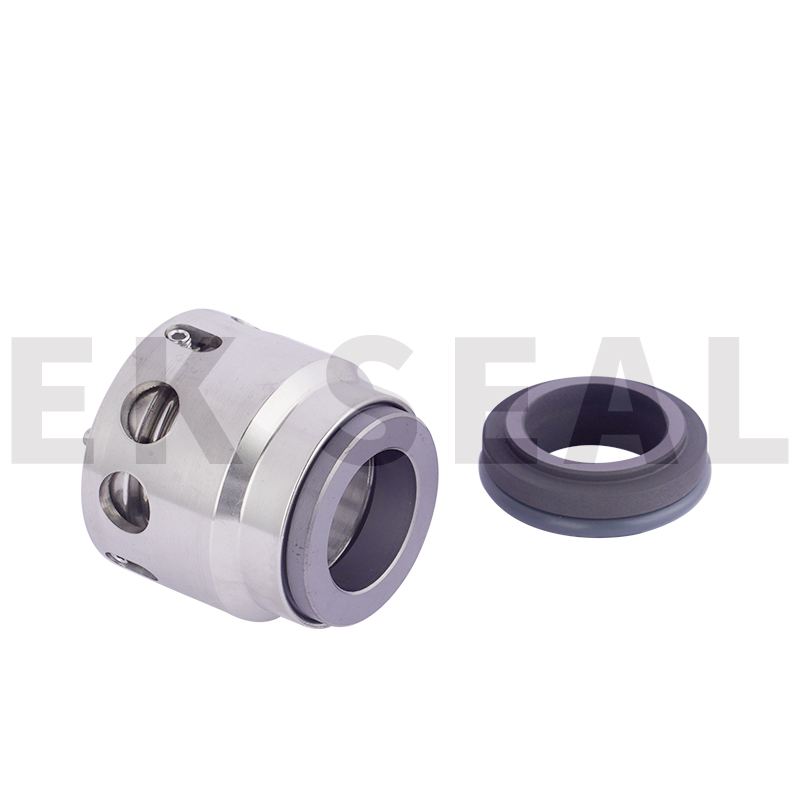

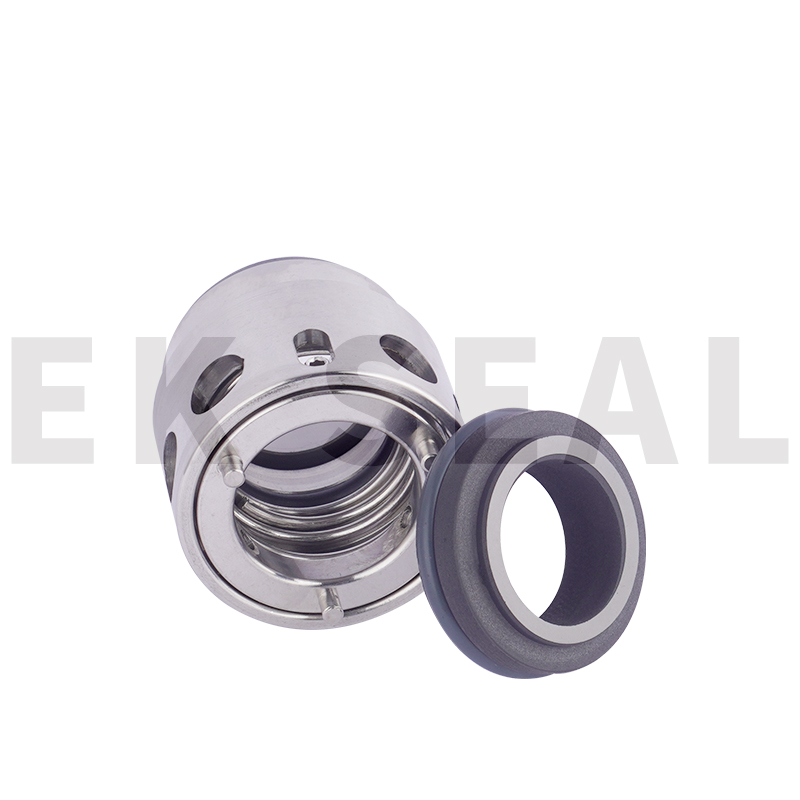

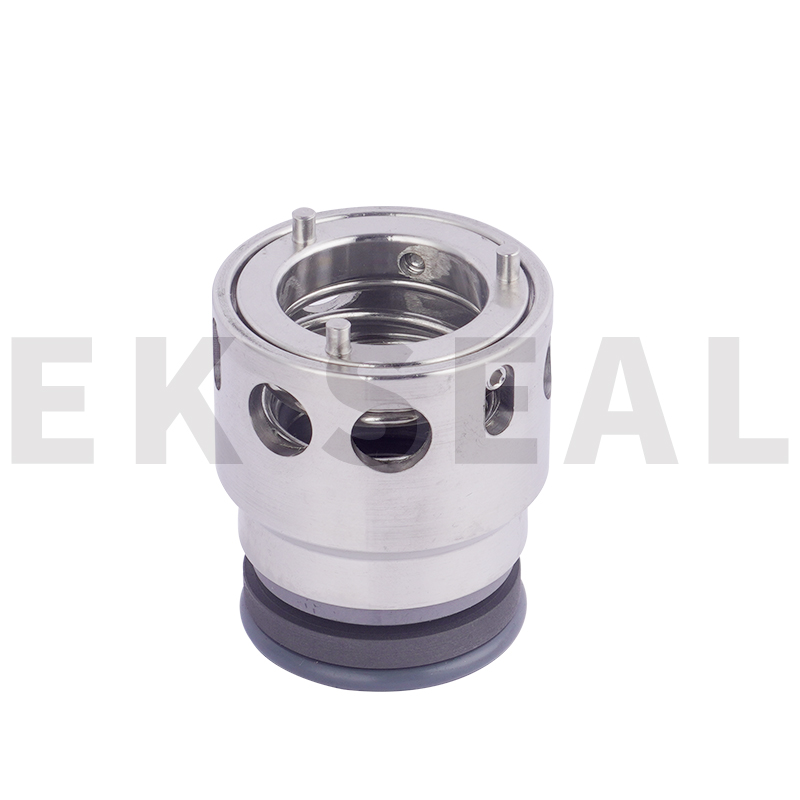

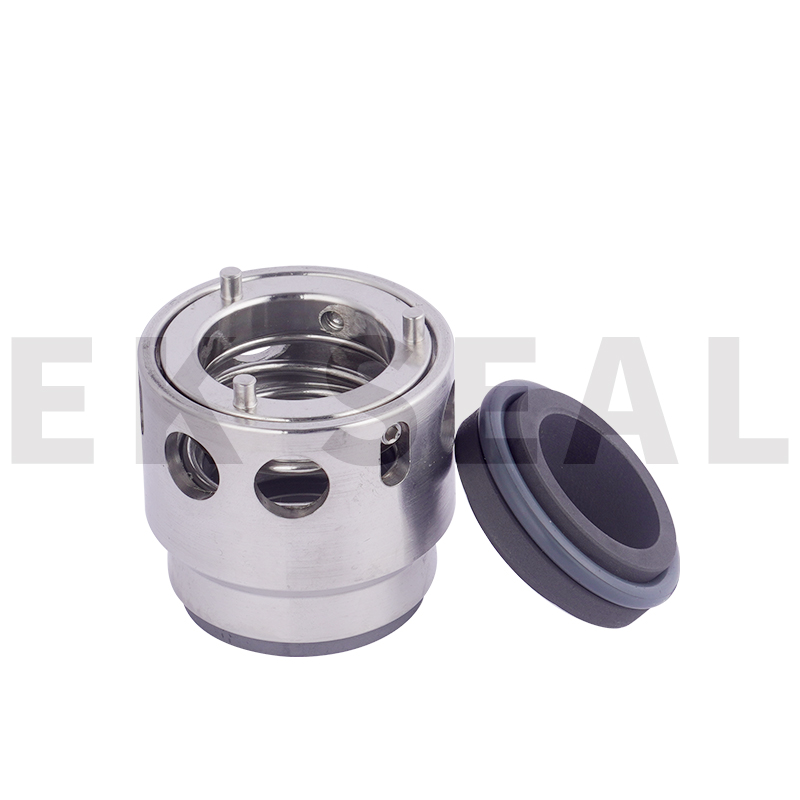

Our mechanical seal model LWR-22 is mainly applied in the pumps for Lowara SVI 33,46,66,92.It can replace the seals for AESSEAL T07/T07D/T07X,BurgmannM2N,Roten UNITEN 22Hecker HN 400A.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure: ≤1.4 MPa

Temperature:-20°C~+140°C

Linear Speed: ≤15 m/s

Materials

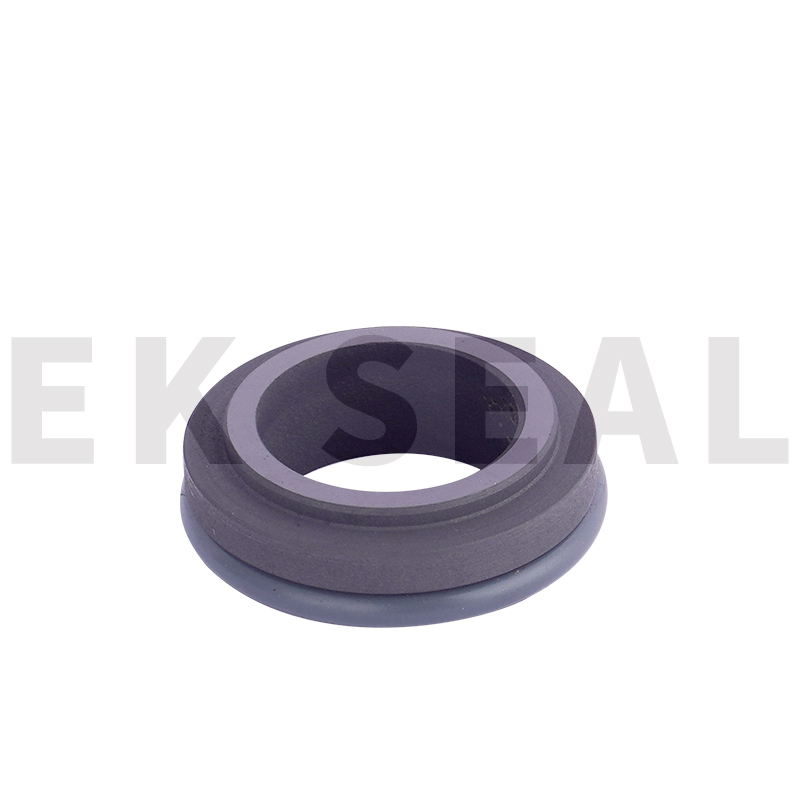

Rotary Ring:Ceramic/SIC/TC

Stationary Ring: Carbon/SIC/TC

Elastomers: NBR/EPDM/VITON

Spring: SSS304/SS316

Metal Parts: SS304/SS316

Mediums

weak acid, weak alkalis, water and solvents.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
