Model NO. EK-WE
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter: 30 mm to 75 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

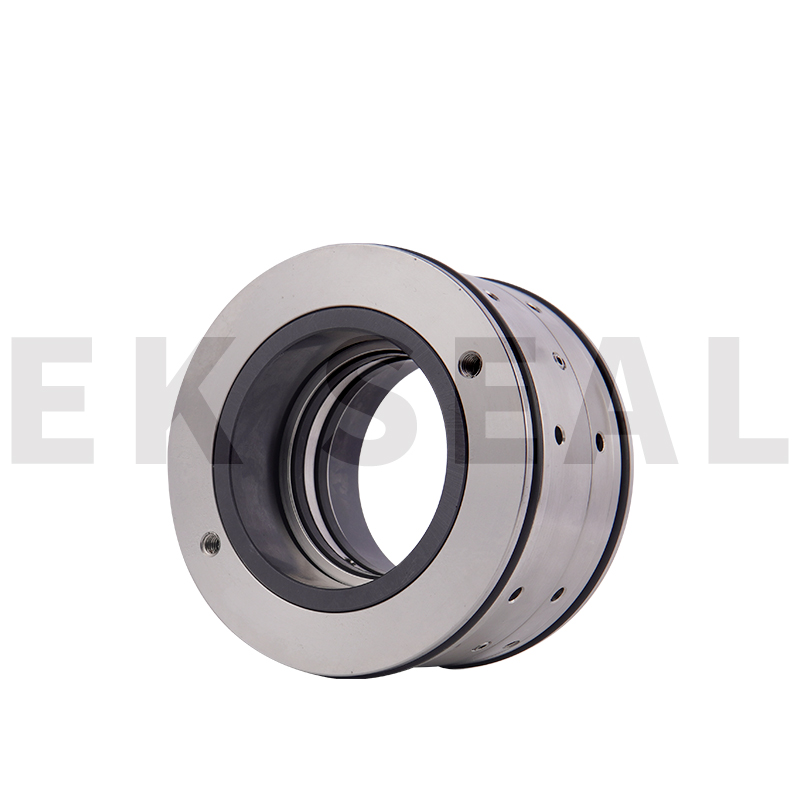

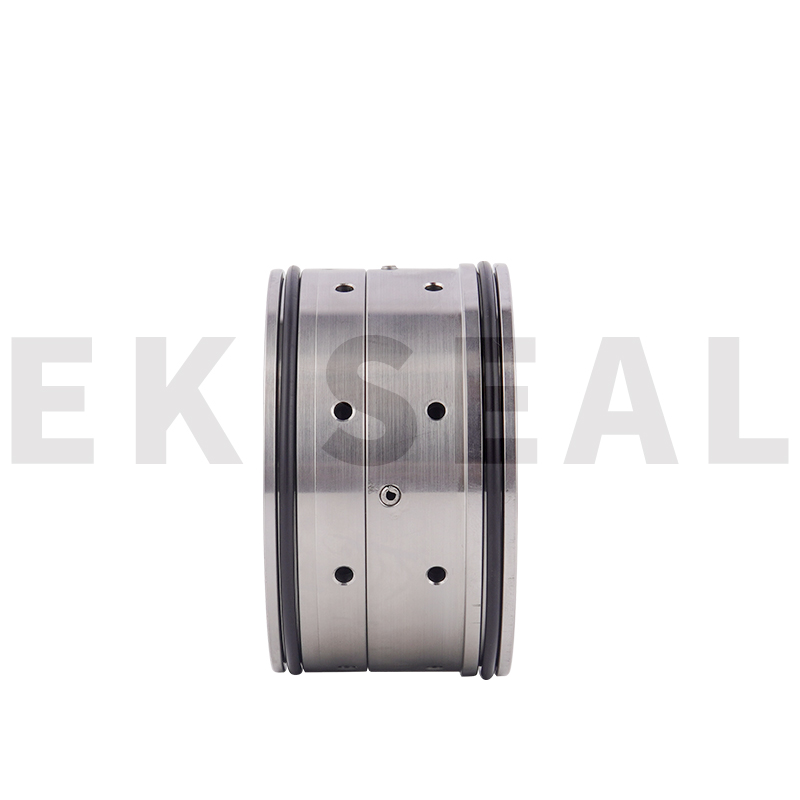

Our mechanical seal model WE is mainly used in the pump for WILO EMU.The normal material combination is sic/sic/viton/ss304. We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure: ≤1.5 MPa

Temperature: -20°C~+200°C

Linear Speed: ≤20 m/s

Materials

Rotary Ring:SIC/TC

Stationary Ring: SIC

Elastomers:NBR/VITON/EPDM

Springs: SSS304/SS316

Metal Parts: SS304 /SS316

Mediums

weak acid, weak alkalis, water and solvents.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
