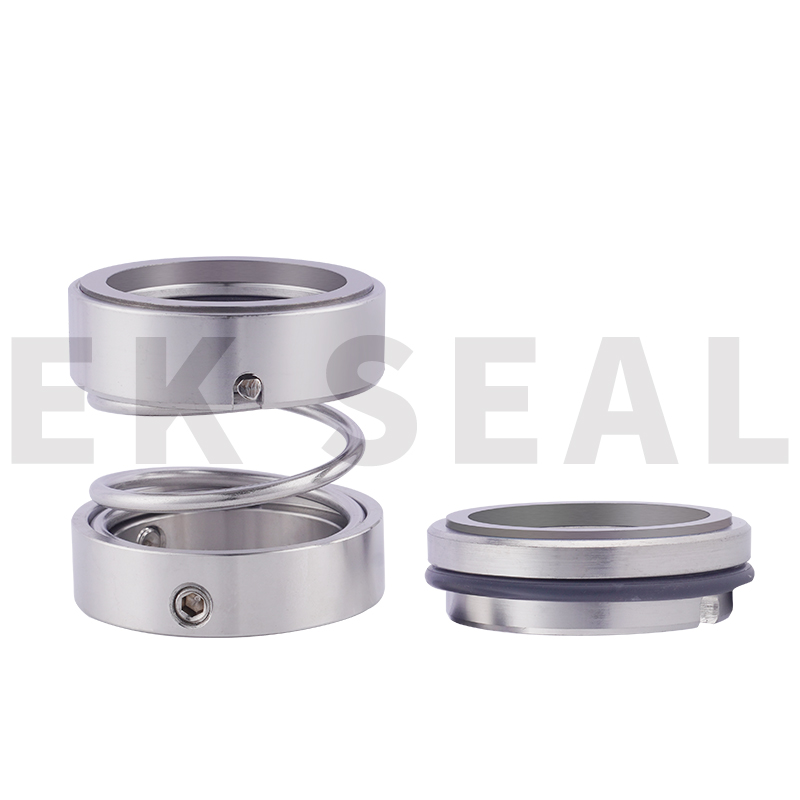

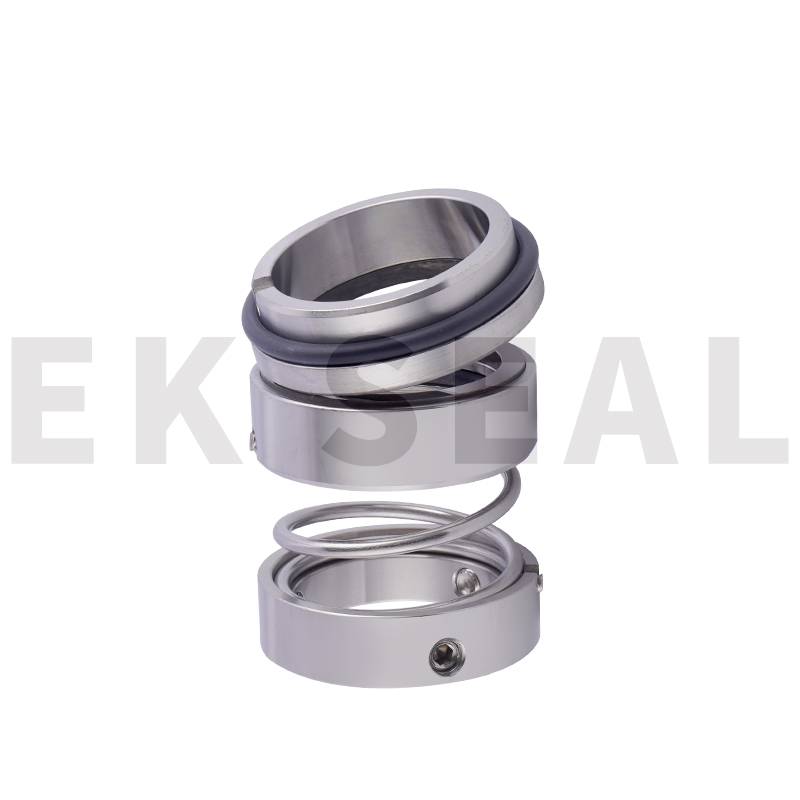

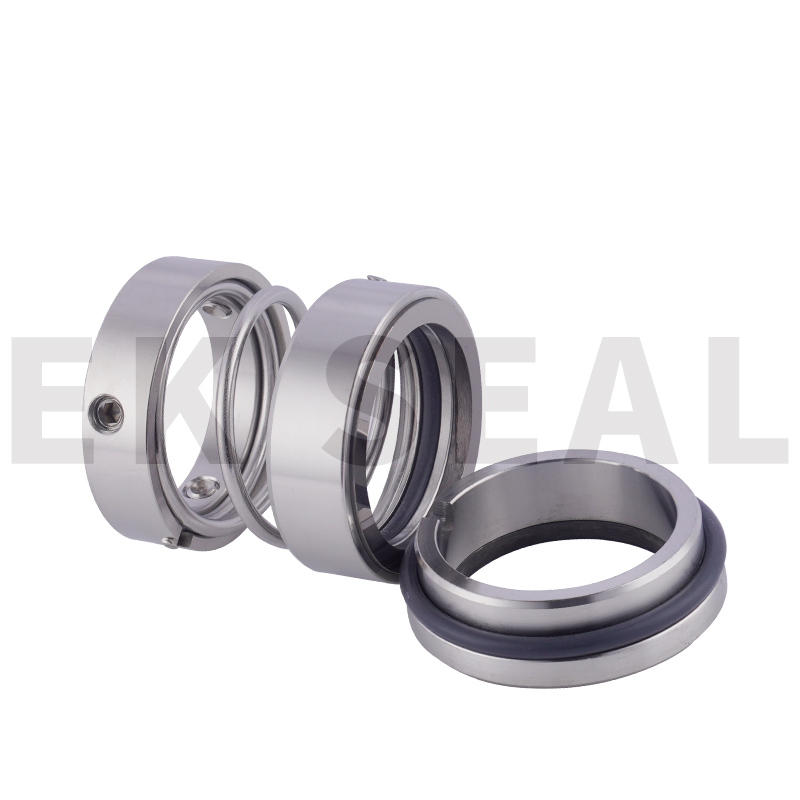

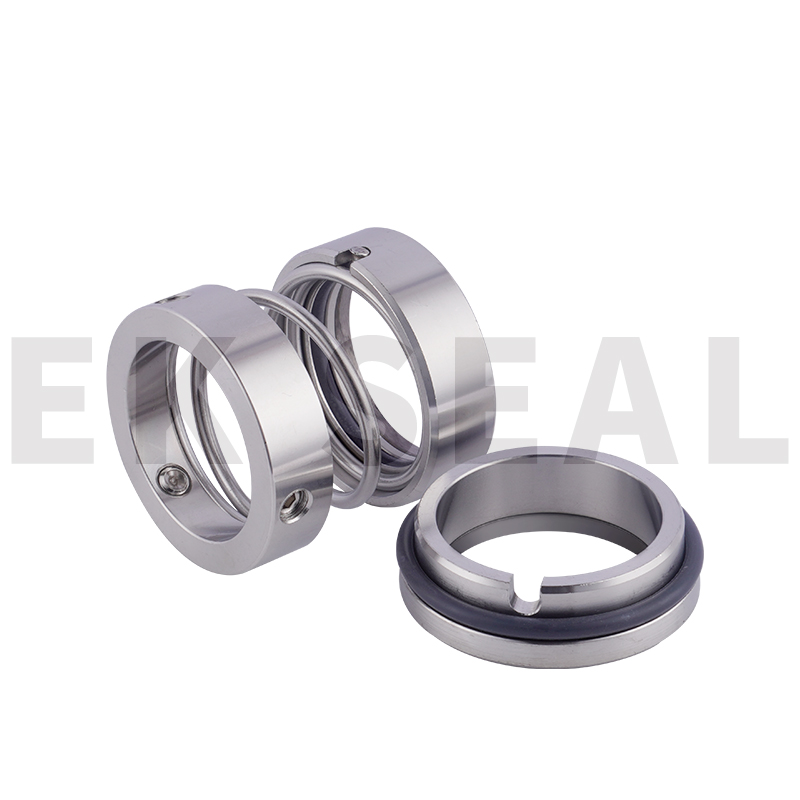

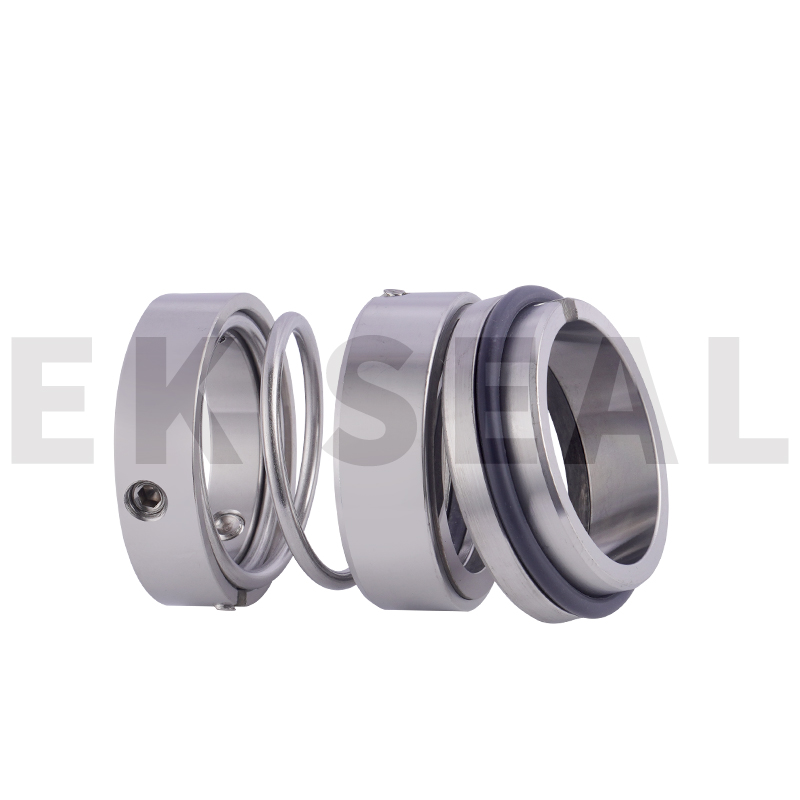

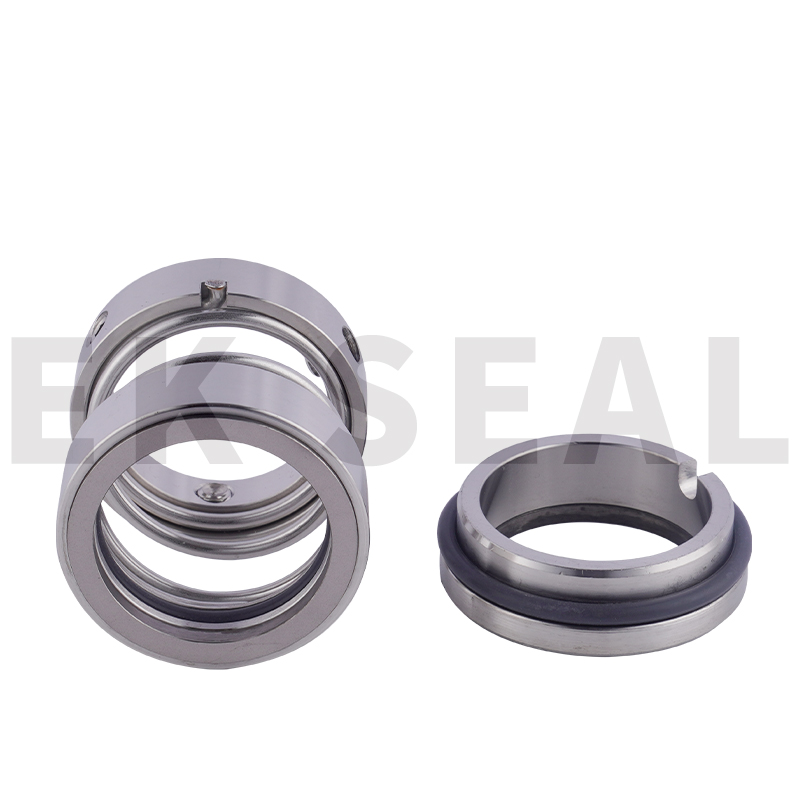

108U series mechanical seal,High temperature and corrosion resistance ,35mm-100mm
| Model NO. | EK-108U |
| Balance | Unbalanced |
| Standard | ISO3069, GB6556, DIN24960 |
| Specification | Inner Diameter: 35 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner
Request ConsultationOur Mechanical seal model 108U is widely used in petrochemical engineering, oil refining, chemical processing, chemical fibering, water treatment and chemical transportation.Its component of single end and single spring, unbalanced, fixed rotary direction and spring coil driven whose structure has a fixed rotary direction,making the structure of seals simple an low cost. This seal component has a wide usage and is stable and reliable.We also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure: ≤0.8 MPa
Temperature:-20°C~ +150°C
Linear Speed: ≤15 m/s
Materials
Rotary Ring: SIC/TC
Stationary Ring: Carbon/SIC/TC
Elastomers: NBR/EPDM/FFKM/Aflas/PTFE
Springs: SS304/SS316
Metal Parts: 2Cr13/SS304/SS316
Mediums
oil, water, amorphism acid, alkali, and organic solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
