102U series mechanical seal,Replacement for John Crane T109,T9,T909 seal Roten90 seal, Sealol T seal, Sterling 290 seal ,25mm-85mm
102U series mechanical seal,Replacement for John Crane T109,T9,T909 seal Roten90 seal, Sealol T seal, Sterling 290 seal ,25mm-85mm

102U series mechanical seal,Replacement for John Crane T109,T9,T909 seal Roten90 seal, Sealol T seal, Sterling 290 seal ,25mm-85mm

Model NO. EK-102U
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter: 25 mm to 85 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

Our mechanical seal model 102U is mainly used in the pumps for Sarlin, Tuchenhagen, Hilge,HM, HMS series and etc.It can replace the seals for John Crane T109,T9,T909 seal Roten90 seal, Sealol T seal, Sterling 290 seal.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure: ≤12 MPa

Temperature:-30°C~+180°C

Linear Speed:≤10m/s

Materials

Rotary Ring: SIC/TC

Stationary Ring: Carbon/SIC/TC

Elastomers: EPDM/VITON

Spring: SS5304/SS316

Metal part5:SS304 /SS316

Mediums

weak acid, weak alkalis, water and solvents.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

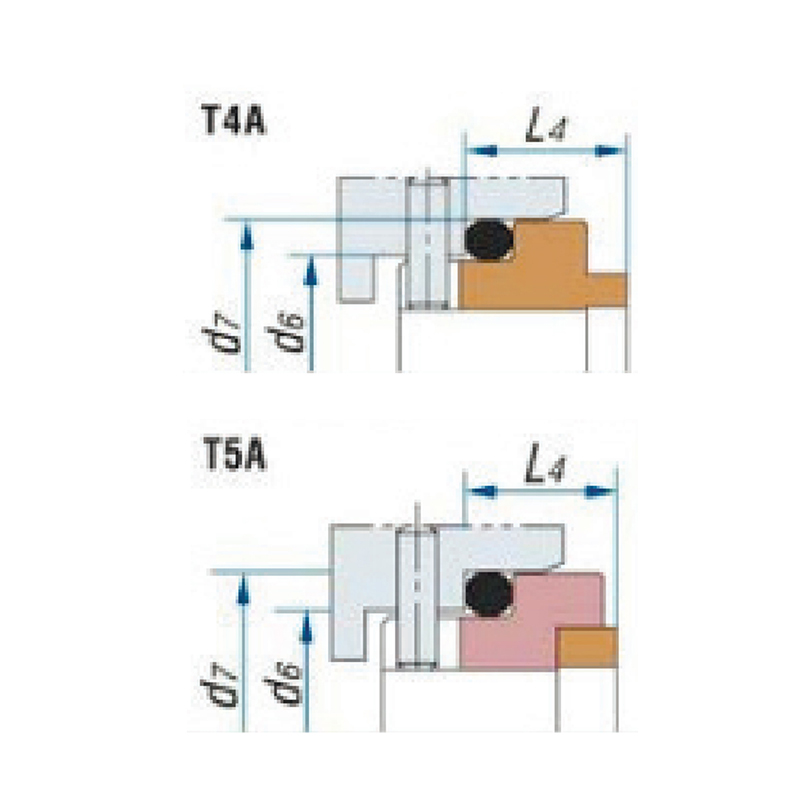

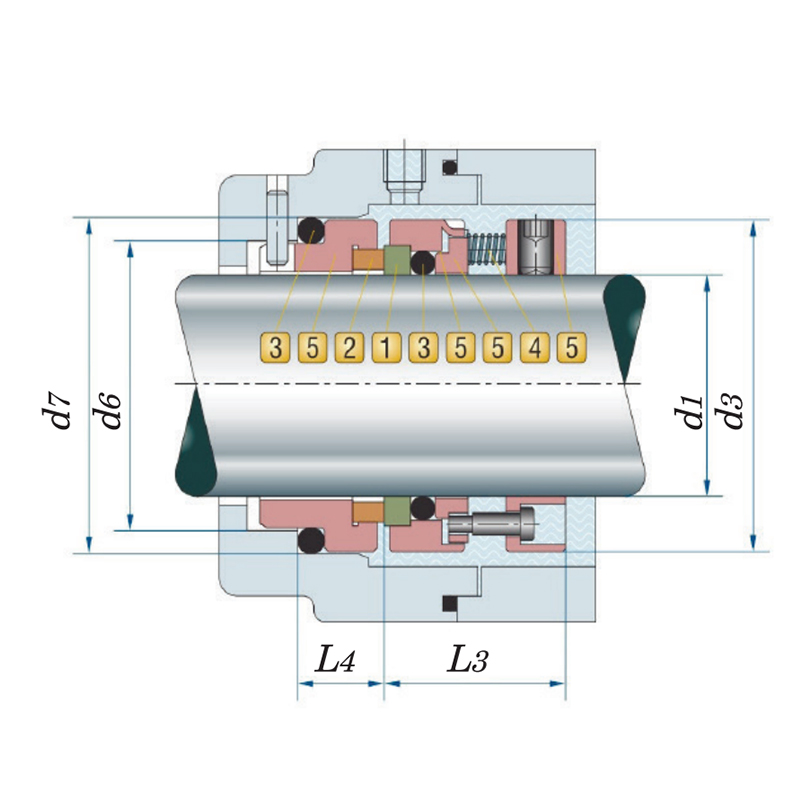

EK_102U_para1.jpg EK_102U_para2.jpg
