Model NO. | EK-301 |
Balance | Unbalanced |
Standard | DIN24250 |
Specification | Inner Diameter: 6 mm to 60 mm |
Packaging Details | Carton |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

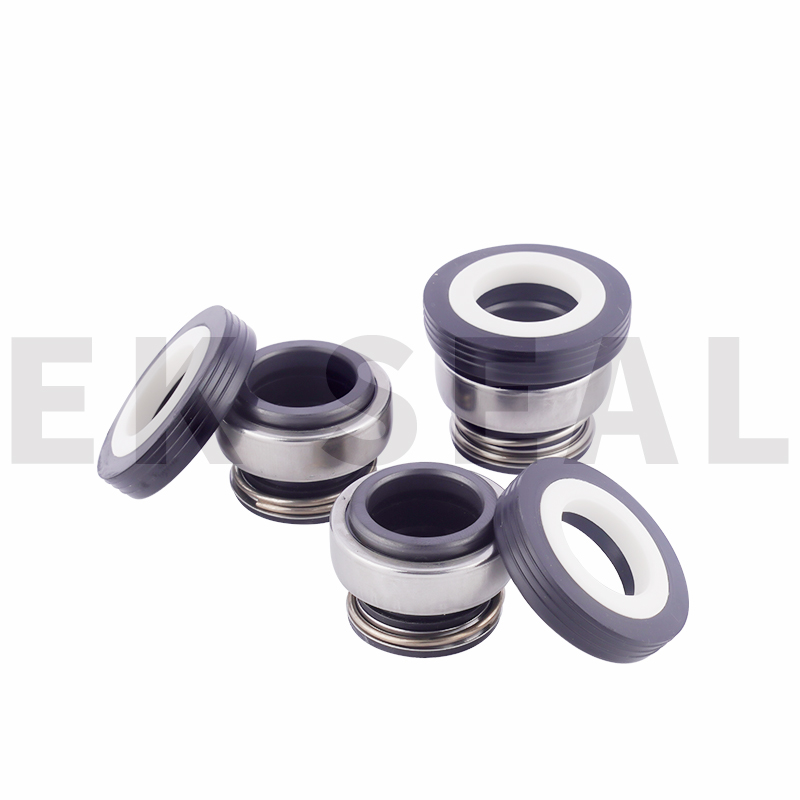

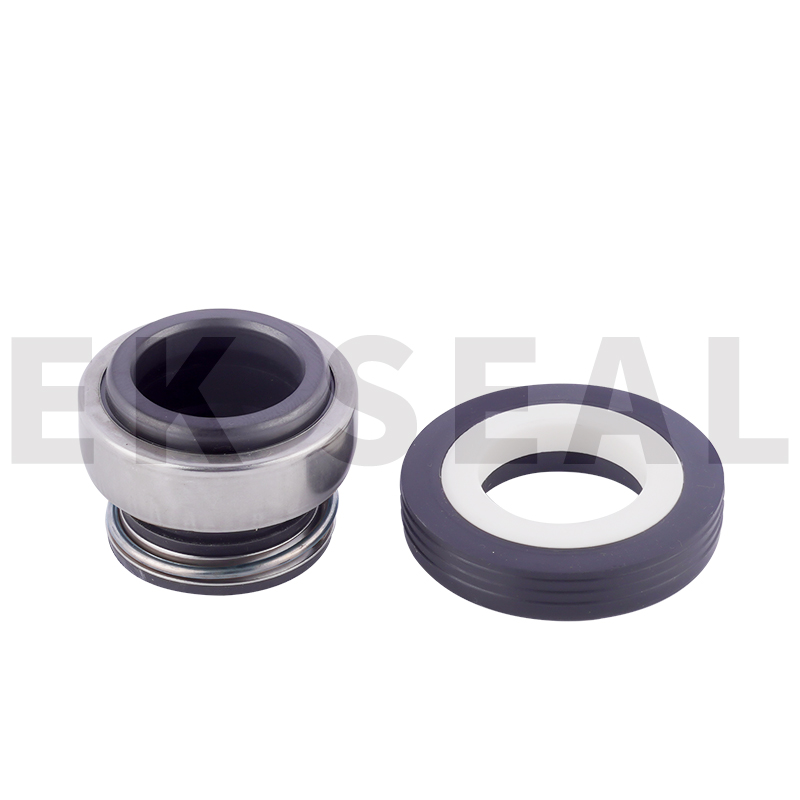

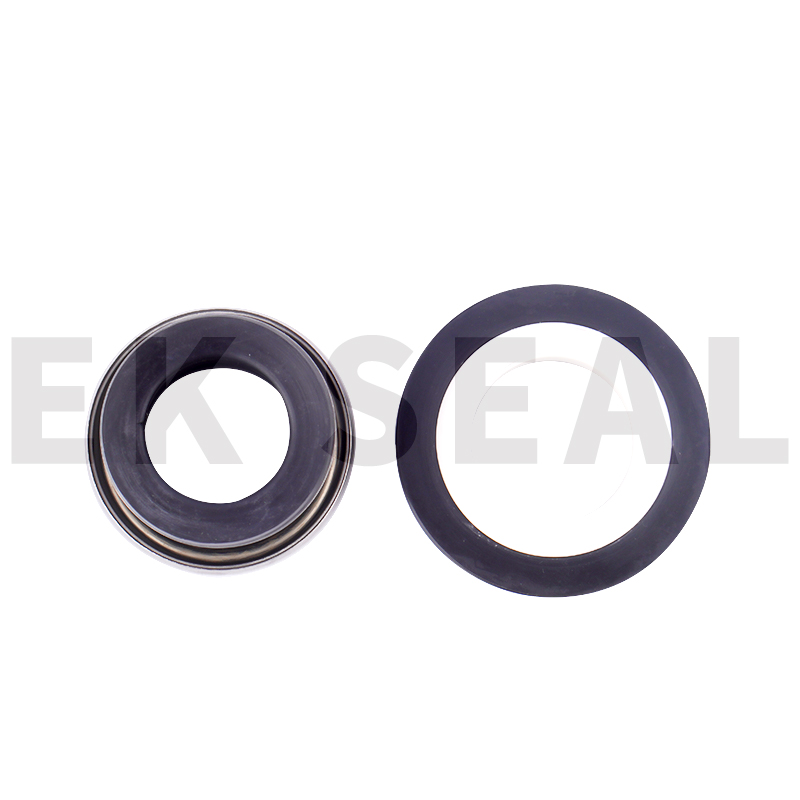

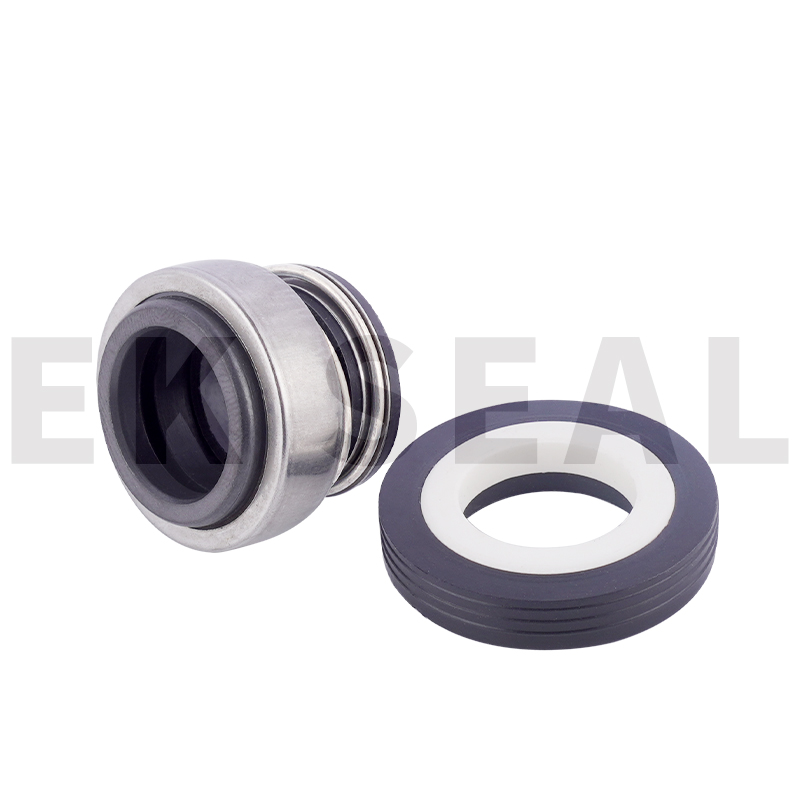

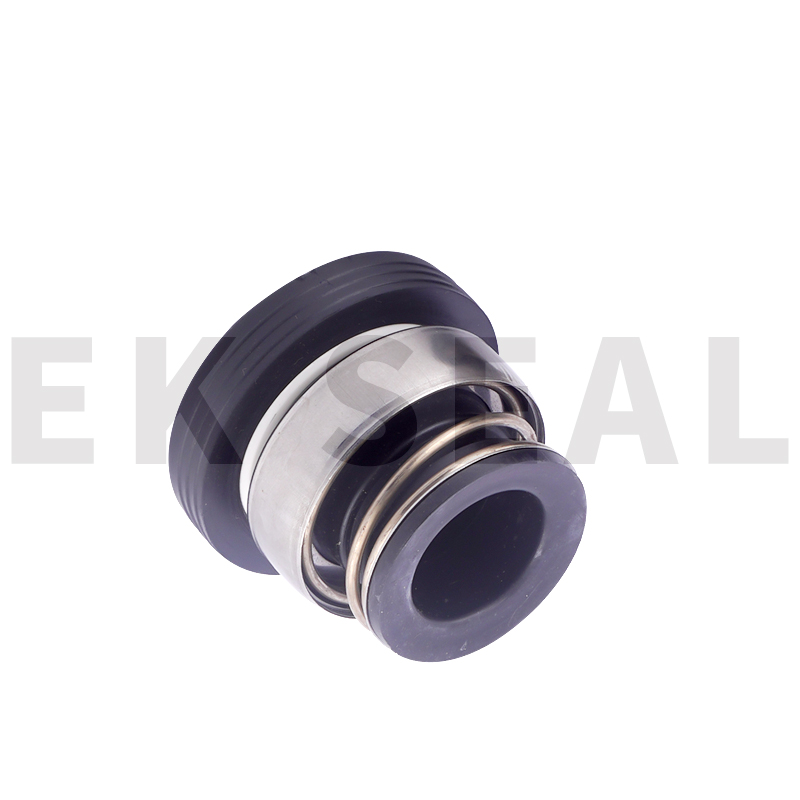

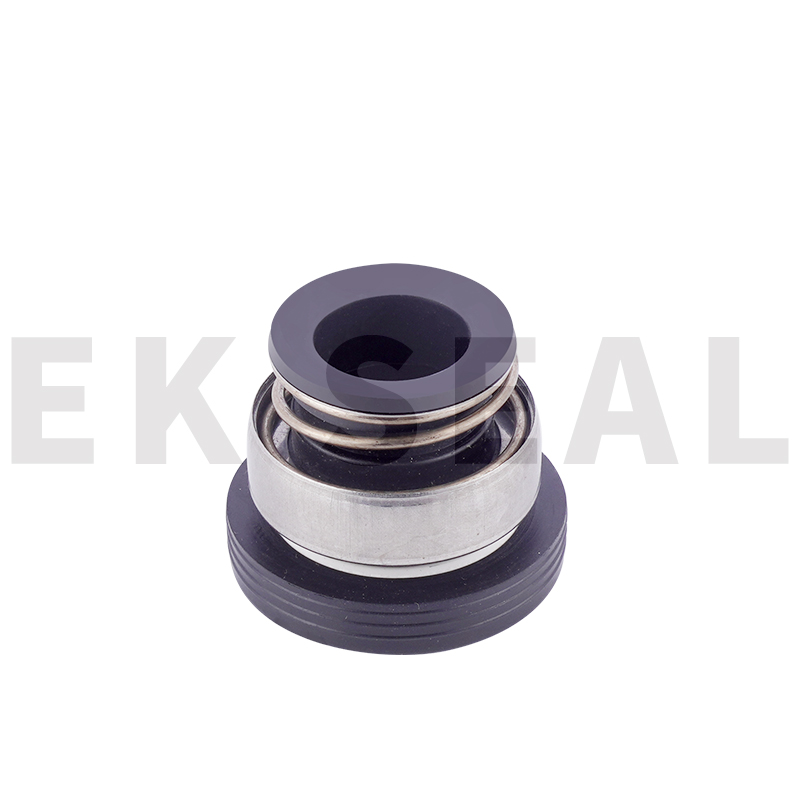

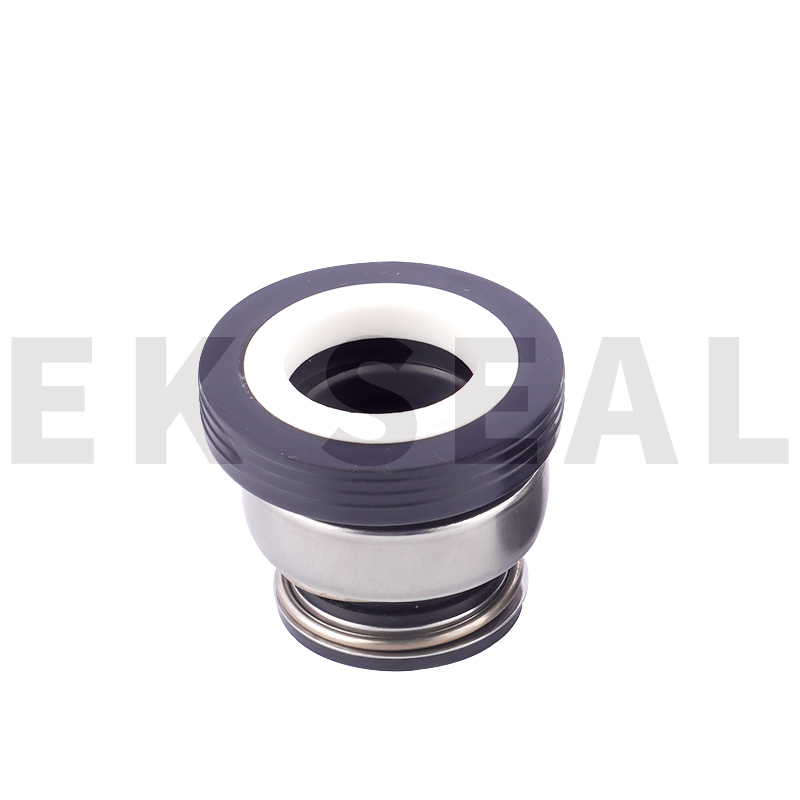

Request ConsultationOur mechanical seal model 301 is widely used in clean water pumps, piping pumps, submerged agitators, temperature control pumps and other rotary devices for sewage treatment, food processing, water supply, and other civilian usages. This component can work as an alternative to Burgmann BT-AR.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Pressure: ≤0.6 MPa
Temperature: - 20°C~ +100 ºC
Linear Speed: ≤10 m/s
Rotary Ring: Carbon/SIC/TC
Stationary Ring: Al202/SIC/TC
Elastomers:NBR/EPDM/VITON
Springs: SS304/SS316
Metal Parts: SS304/SS316
oil, water, and weak corrosive mediums.
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
