Model NO. EK-2100
Balance Balanced
Standard DIN24250, ISO3069, GB6556, EN12756
Specification Inner Diameter: 10 mm to 100 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

Our Mechanical seal model 2100 can Replace AESSEAL B05,Crane 2100 and FLOWSERVE 140.We usually use seat type G6 for match it. The normal material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on.This mechanical seal is mainly used in centrifugal pumps, vacuum pumps, submerged motors, compressors, agitation equipment and decelerators for sewage treatment, chemical engineering, pharmacy, paper making and food processing. This component can work as an alternative to the similar product of John Crane.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure: ≤1.2 MPa

Temperature: - 20°C~ +120 ºC

Linear Speed: ≤10 m/s

Materials

Rotary Ring:Carbon/SIC/TC

Stationary Ring:Ceramic/SIC/TC

Elastomers:NBR/EPDM/VITON

Springs:SS304/SS316

Mediums

oil, water, weak acid and alkali and other corrosive mediums.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

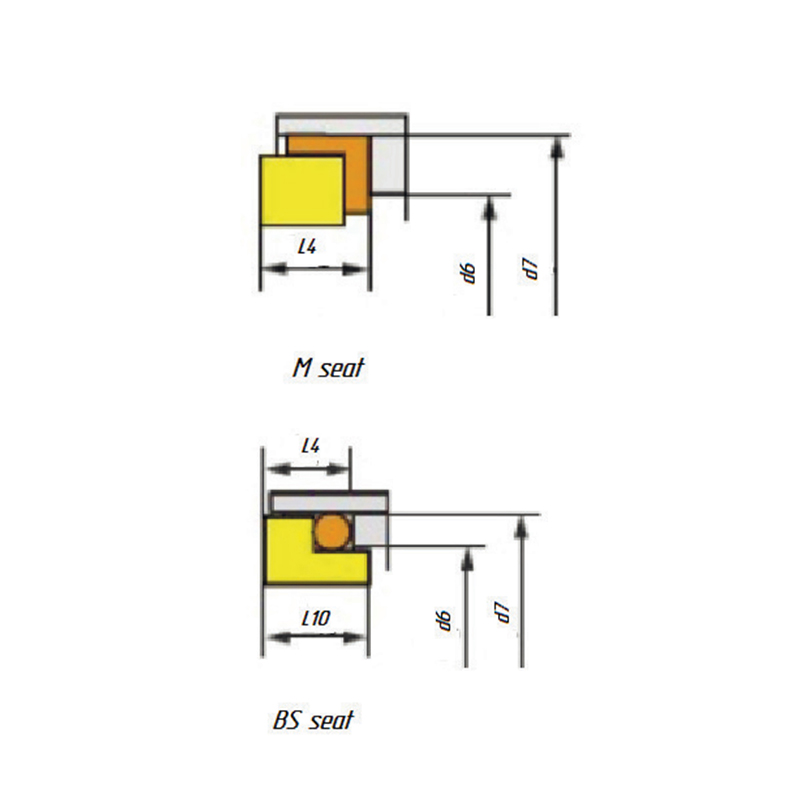

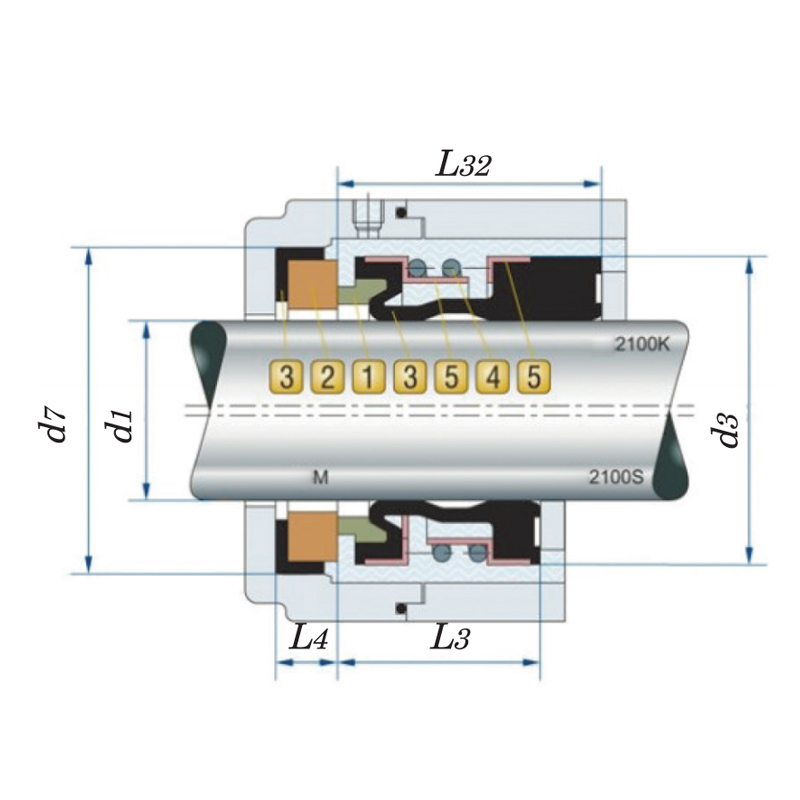

EK_2100_para1.jpg EK_2100_para2.jpg
