21 series mechanical seal,Replacement for Burgmann MG920/ D1-G50 seal,Crane 21(N SEAT) seal and so on ,10mm-75mm
21 series mechanical seal,Replacement for Burgmann MG920/ D1-G50 seal,Crane 21(N SEAT) seal and so on ,10mm-75mm

21 series mechanical seal,Replacement for Burgmann MG920/ D1-G50 seal,Crane 21(N SEAT) seal and so on ,10mm-75mm

Model NO. EK-21
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter: 10 mm to 75 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

Our Mechanical seal model 202/208 is widely used in the series pumps for Haigh, Hidrostal, Hilde,Inbeat, INOX,InoxpaJabsco, Johnson, KSB, Lowara, Mouvex, Nissin,KSB, Lowara, Mouvex, Nissin, and anotherpumps.It can replace the seals for EA560D Burgmann, John Crane 6,AESSEAL B04.We also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure:≤0.16 MPa

Temperature:-20°C~+70°C

Linear Speed: ≤20m/s

Materials

Rotary Ring: Carbon /SIC

Stationary Ring: Ceramic/ SIC

Elastomers: NBR/VITON

Springs: SS304 /SS316

Metal Parts: SS304 /SS316

Mediums

weak acid, weak alkalis, water and solvents.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

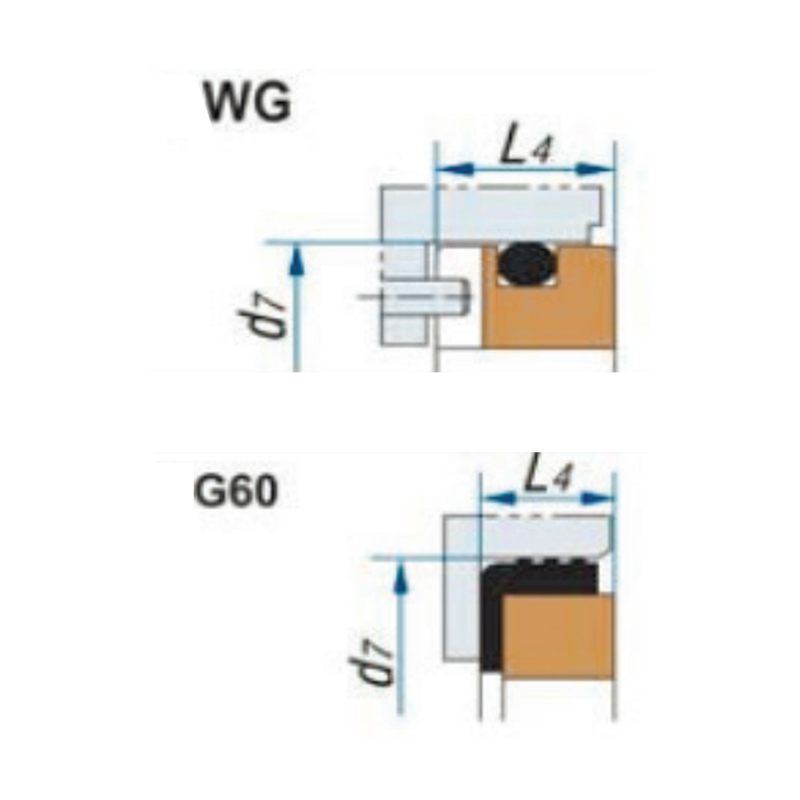

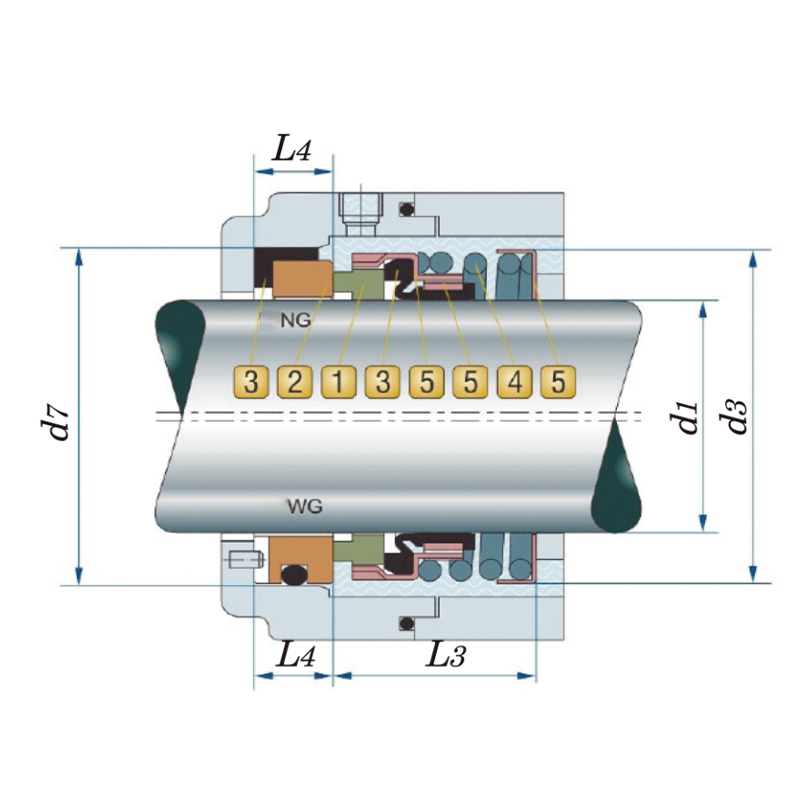

EK_21_para1.jpg EK_21_para2.jpg

Videos to be updated
