MG16 series mechanical seal,High temperature and corrosion resistance ,9mm-25mm
MG16 series mechanical seal,High temperature and corrosion resistance ,9mm-25mm

MG16 series mechanical seal,High temperature and corrosion resistance ,9mm-25mm

Model NO. EK-16
Balance Unbalanced
Standard DIN24960, ISO3069, GB6556, EN12756
Specification Inner Diameter: 9 mm to 25 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

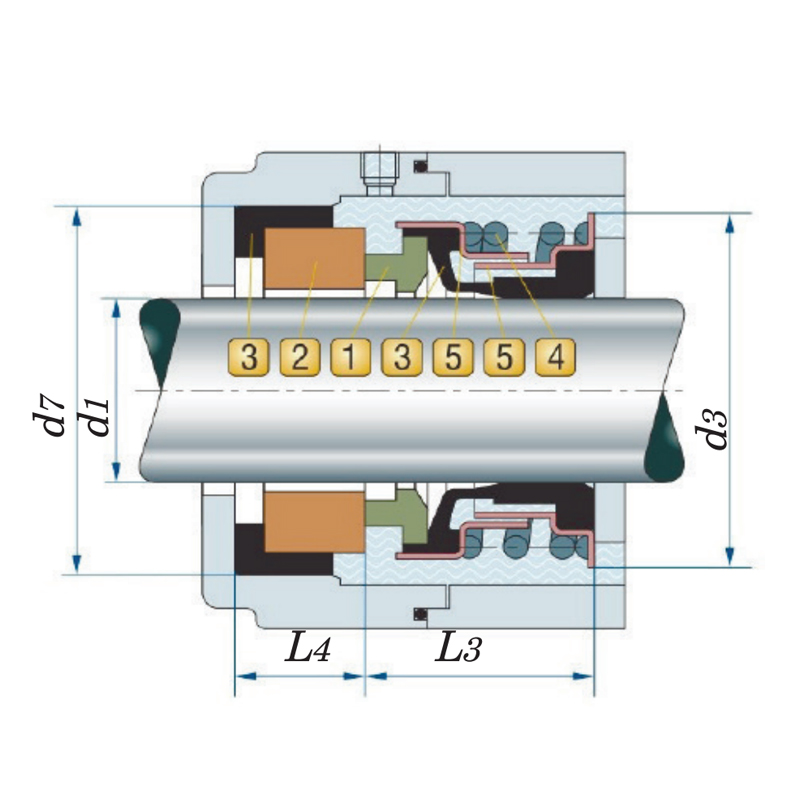

Our Mechanical seal model 16 has the superior quality of high temperature and corrosion resistance. The normal material combination is sic/sic/VITON/ss304.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure: ≤0.5MPa

Temperature: -20°C~ +150°C

Linear Speed: ≤10m/s

Materials

Rotary Ring: Carbon/SIC

Stationary Ring: Ceramic/SIC

Elastomers:NBR/EPDM/VITON

Springs: SS304/SS316

Metal Parts: SS304/SS316

Mediums

oil, water, and weak corrosive mediums.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
