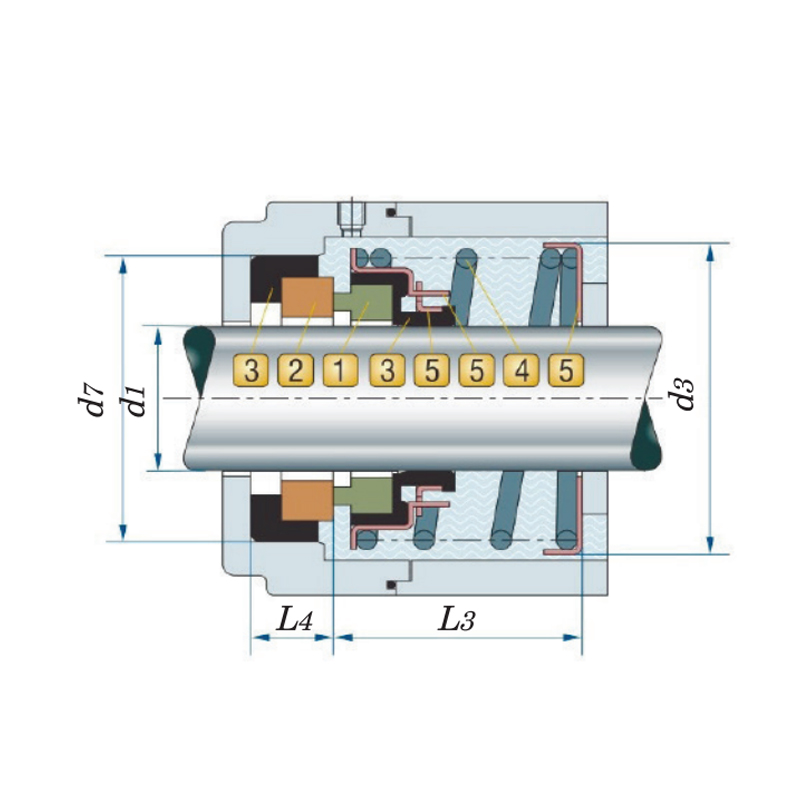

110 series mechanical seal,High temperature and corrosion resistance ,35mm-100mm
| Model NO. | EK-110 |
| Balance | Unbalanced |
| Standard | ISO3069, GB6556, DIN24960 |
| Specification | Inner Diameter: 35 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner
Request ConsultationOur Mechanical seal model 103 is widely used in petrochemical engineering, oil refining, chemical processing, chemical fibering, water treatment and chemical transportation.It has single end and single spring, unbalanced, free rotary direction and spring coil driven whose structure has a fixed rotary direction. The structure of this seal is simple and the cost is low. This seal component has a wide usage and is stable and reliable. This EK-110 single seal can work with 128 seal as a double seal.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure: ≤0.8 MPa
Temperature: -20°C~ +150°C
Linear Speed: ≤15 m/s
Materials
Rotary Ring: SIC/TC
Stationary Ring: Carbon/SIC/TC
Elastomers:NBR/EPDM/FFKM/Aflas/PTFE
Springs: SS304/SS316
Metal Parts: 2Cr13/SS304/SS316
Mediums
oil, water, amorphism acid, alkali, and organic solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
