Model NO. EK-HG204-204B
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter: 30 mm to 110 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

Our mechanical seal model HG204 series is mainly applied in the pumps for Alfa Laval, APV, Kepeida, Inoxpa,KSB, LOWARA, Grundfos, Hilge, Ebara, etc.It can replace the seals for Burgmann,John Crane,Roten、AESSEAL、Anga、Vulcan、Lidering、DIMER.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure:≤0.6 MPa

Temperature:-20°C~+200°C

Linear Speed:≤500 rpm

Materials

Rotary Ring:SIC/TC/Carbon

Stationary Ring:Carbon/TC

Elastomers: EPDM/VITON

Springs: SSS304/SS316

Metal Parts: SS304 /SS316

Mediums

weak acid, weak alkalis, water and solvents.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

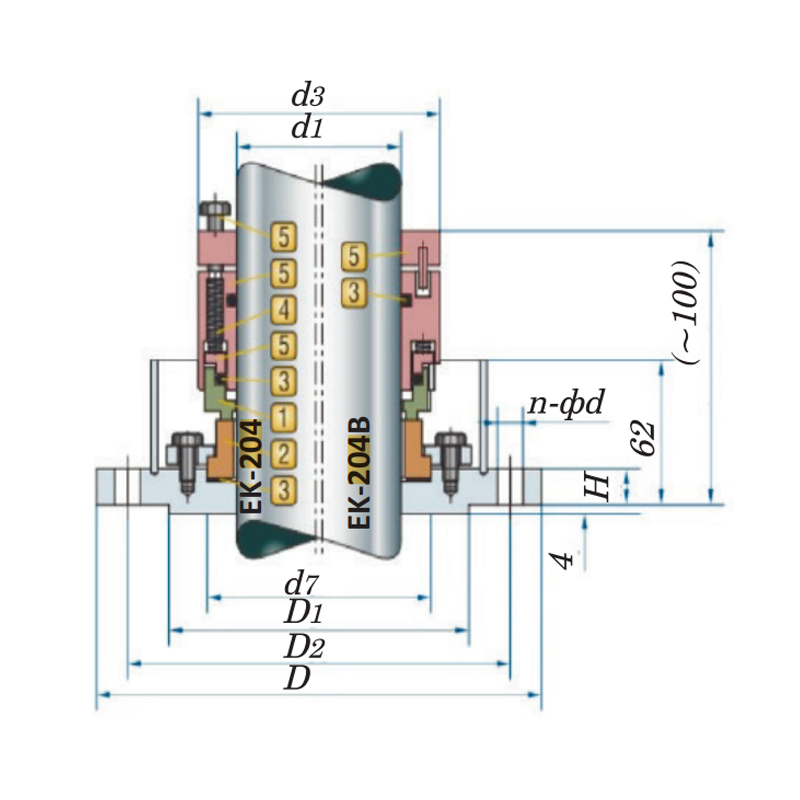

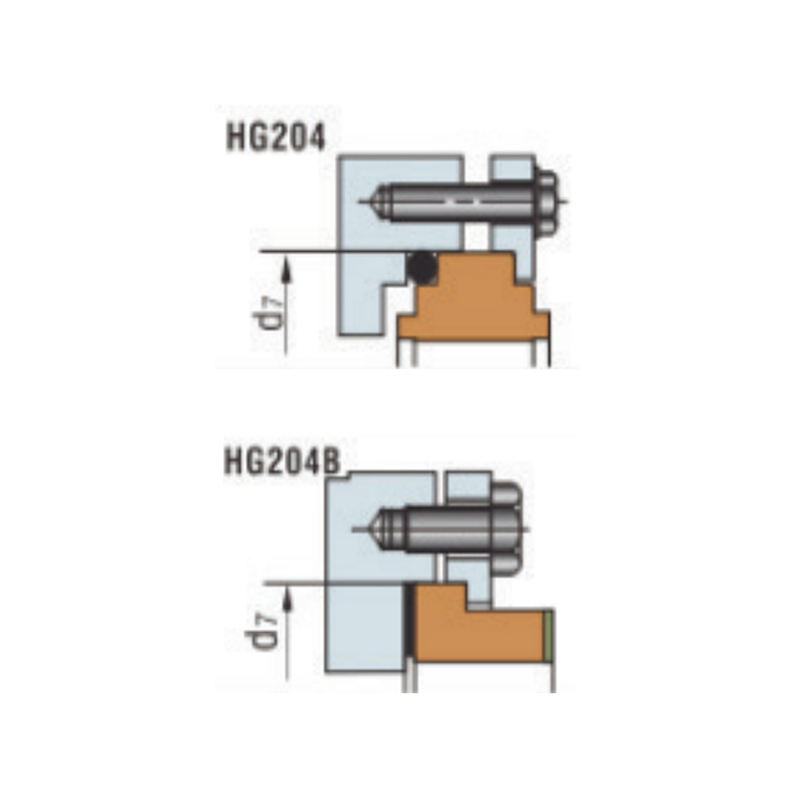

EK_HG204_204B_para1.jpg EK_HG204_204B_para2.jpg

Videos to be updated
