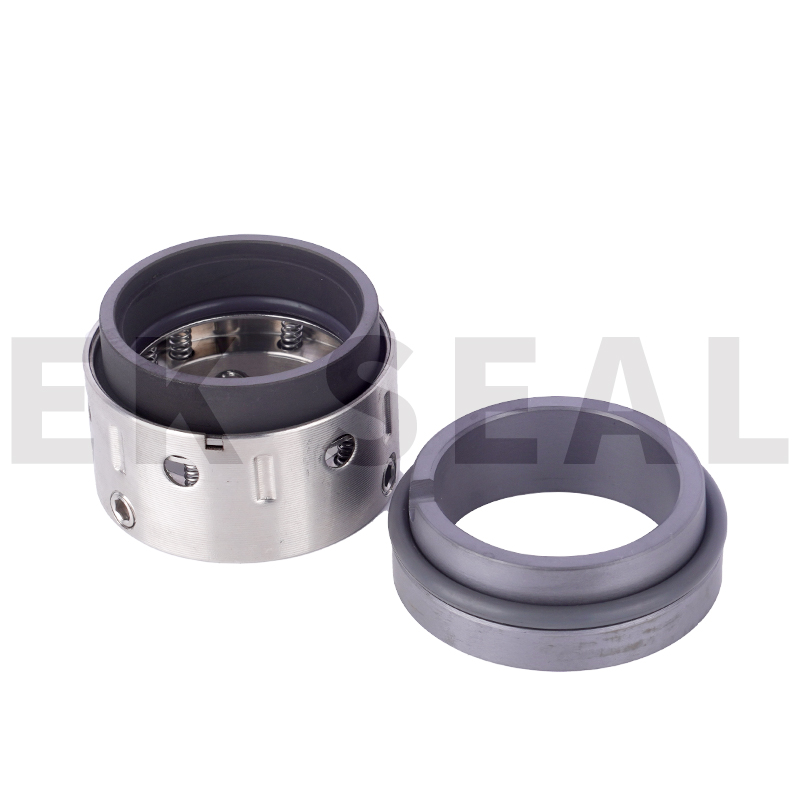

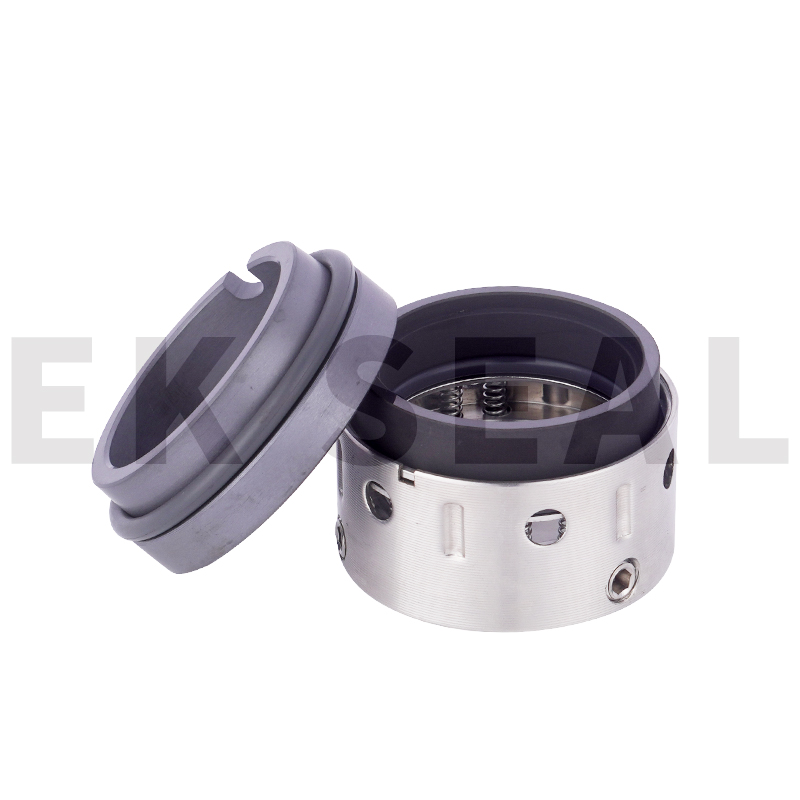

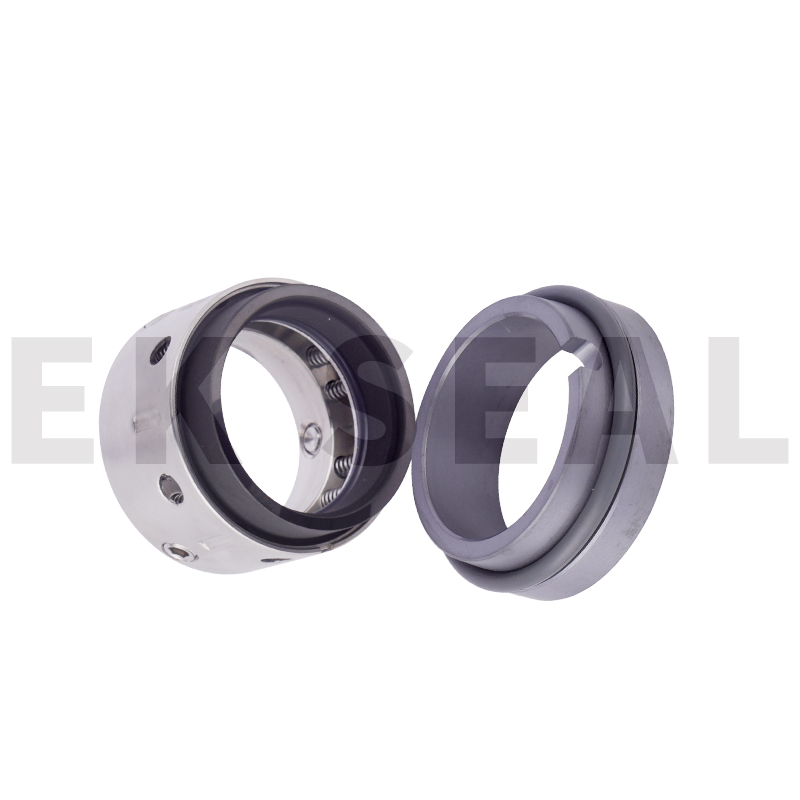

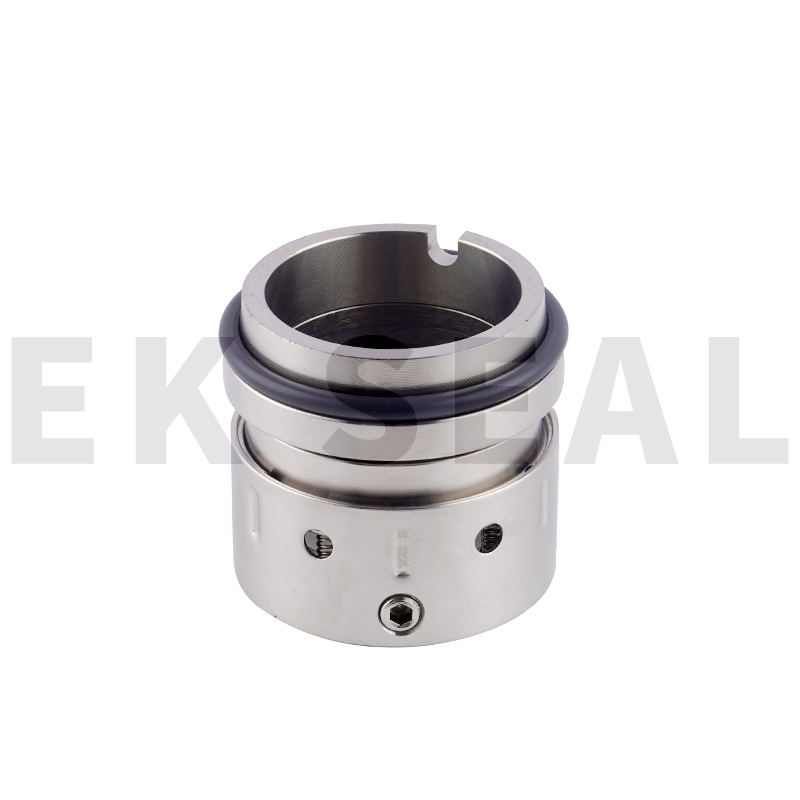

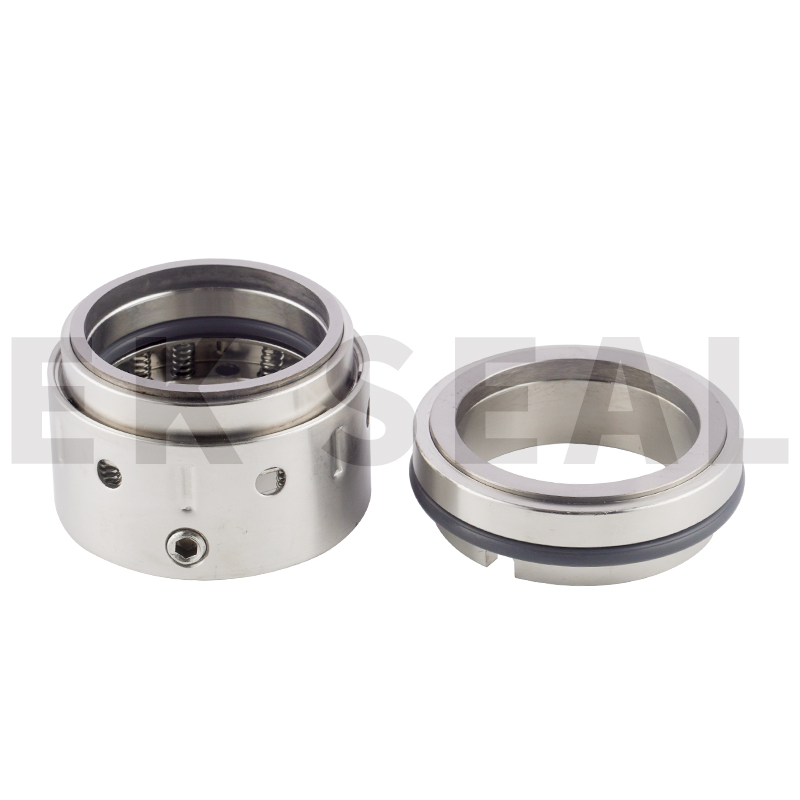

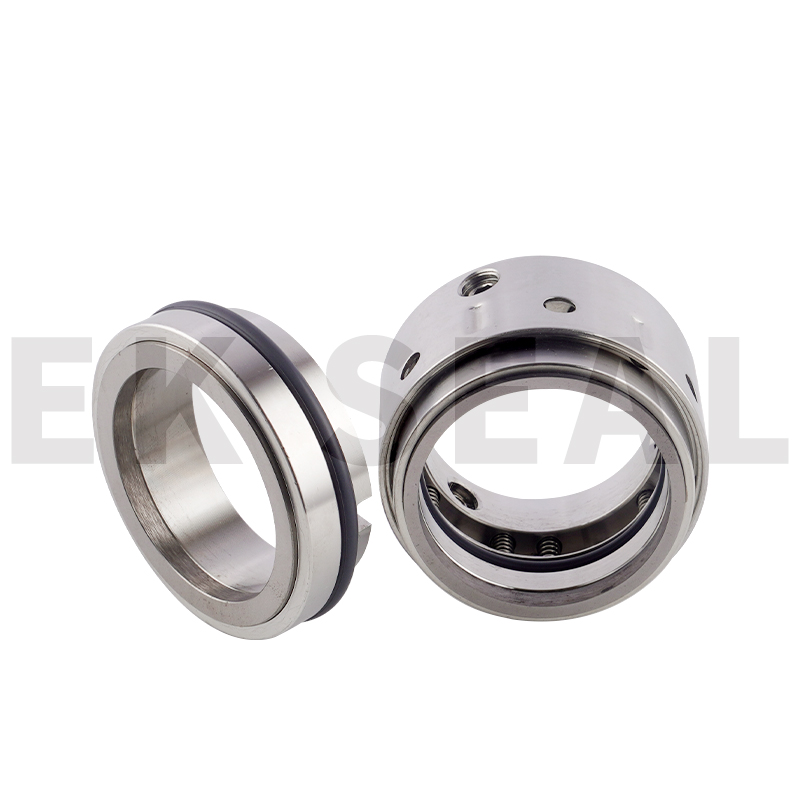

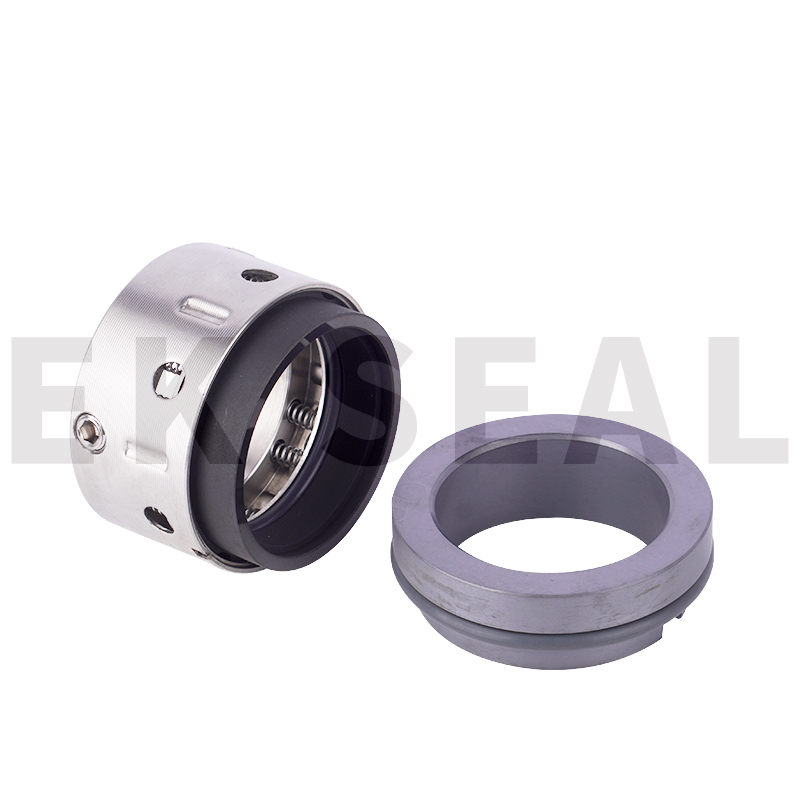

58U/59U series mechanical seal,Replacement for John Crane T109,T9,T909 seal Roten90 seal Sealol T seal Sterling 290 seal, Vulcan 1659 ,20mm-100mm
| Model NO. | EK-58U-59U |
| Balance | Unbalanced |
| Standard | DIN24960, ISO3069, GB6556, EN12756 |
| Specification | Inner Diameter: 20 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner
Request ConsultationOur mechanical seal model 58U/59U is mainly used in chemical centrifugal pumps, vacuum pumps, compressors and reaction kettles for industries such as chemical processing, refrigeration, oil refining, petrochemical engineering, sewage treatment, electricity generation, papermaking, and pharmacy.It can replace the seals for John Crane T109,T9,T909 seal Roten90 seal Sealol T seal Sterling 290 seal, Vulcan 1659.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure: ≤1.7 MPa
Temperature:-40°C~+200°C
Linear Speed:≤25m/s
Materials
Rotary Ring: Carbon/SIC/TC

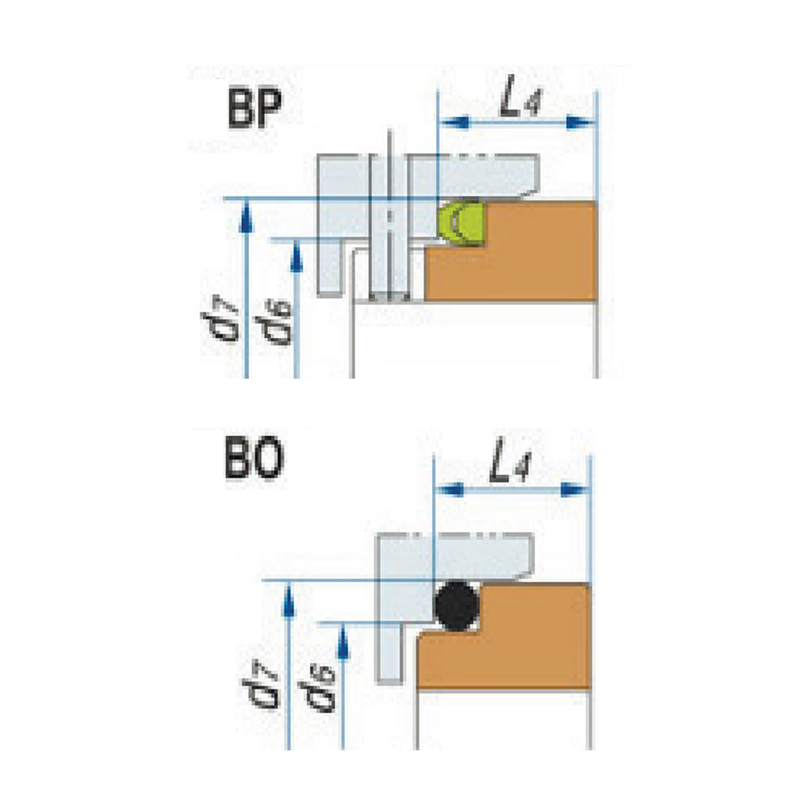

Stationary Ring: SIC/TC/SUS
Elastomers: EPDM/VITON/PTFE
Spring: SS5304/SS316
Metal Parts:SS304 /SS316
Mediums
oil, water, amorphism acid, alkali, salt, and organic solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
